Mounting parts f radiator for BMW 7 Series E66 760Li (2005)

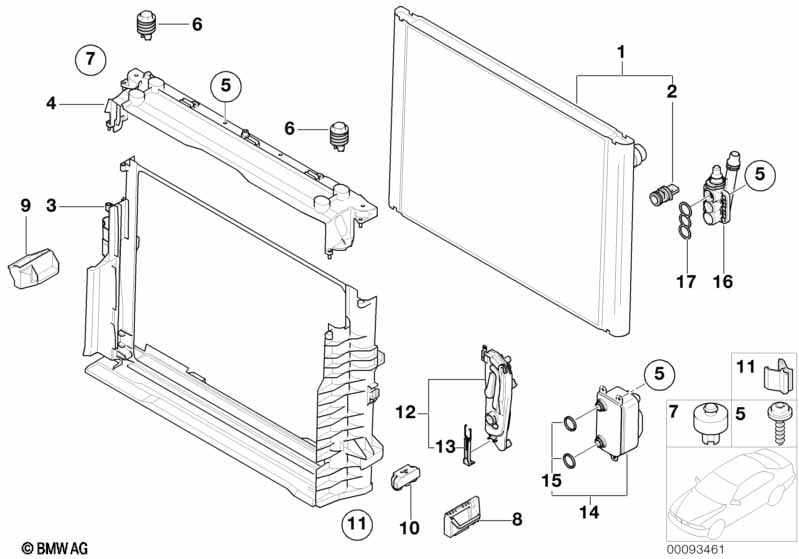

This Mounting parts f radiator technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | 1 | 03/2005 | 17117585440 | $466.63 | Shop at ECS Tuning | ||||
| 02 | Drain plug radiator | 1 | 17112247346 | $9.22 | Shop at ECS Tuning | |||||
| 03 | Module carrier | 1 | 17117507970 | $119.90 | Shop at ECS Tuning | |||||
| 04 | cover, module carrier | 1 | 03/2005 | 17117507971 | $29.18 | Shop at ECS Tuning | ||||
| 05 | Screw self-tapping | D6X20 ZNS3 | 14 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Bracket f.radiator | 2 | 17117514402 | $5.83 | Shop at ECS Tuning | |||||
| 07 | Compensator | 3 | 17117508501 | $1.97 | Shop at ECS Tuning | |||||
| 08 | Lower cooler bracket | 1 | 17117508016 | $6.17 | Shop at ECS Tuning | |||||
| 09 | Lower cooler bracket | 1 | 17117508017 | $6.17 | Shop at ECS Tuning | |||||
| 10 | Rubber Mounting | 2 | 17101439113 | $8.20 | Shop at ECS Tuning | |||||
| 11 | Holder | 2 | 17217507980 | $6.88 | Shop at ECS Tuning | |||||
| 12 | Mounting plate | 1 | 17117507973 | $98.12 | Shop at ECS Tuning | |||||
| 12 | Mounting plate | 1 | 17117534907 | $98.12 | Shop at ECS Tuning | |||||
| 13 | Spring clip | 1 | 17127507981 | $3.95 | Shop at ECS Tuning | |||||
| 14 | Heat exchanger | 1 | 03/2005 | 17217541058 | $255.38 | Shop at ECS Tuning | ||||
| 15 | X-Ring | 16,5X4,8X23 | 2 | 17101439140 | $1.32 | Shop at ECS Tuning | ||||
| 16 | Thermostat | 1 | 17217559962 | $79.21 | Shop at ECS Tuning | |||||
| 17 | Sealing plate | 1 | 17127507983 | $5.12 | Shop at ECS Tuning |
