Cooling water hoses for BMW MINI R53 Cooper S

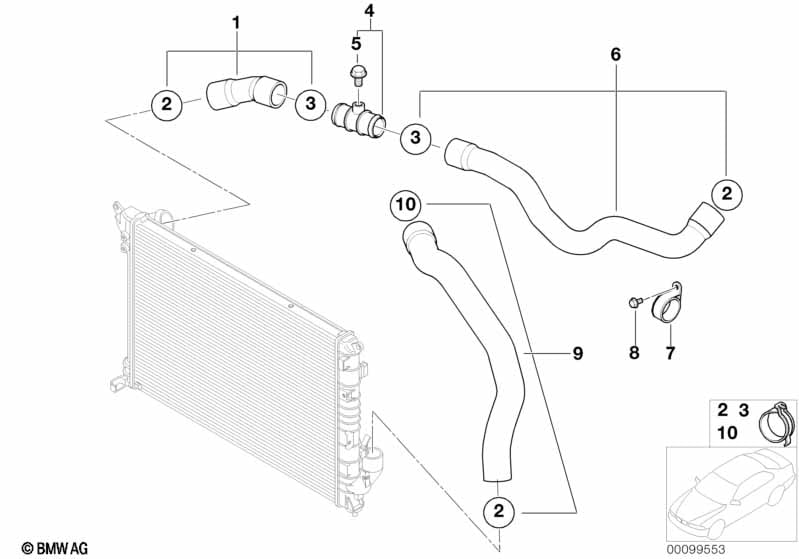

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant hose | 1 | 17127515500 | $26.88 | +core | Shop at ECS Tuning | ||||
| 02 | Hose clamp | D=40MM | 3 | 17127515468 | $2.37 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | D=40MM | 2 | 17127515469 | $2.37 | Shop at ECS Tuning | ||||
| 04 | Breather tube | 1 | 17127515502 | $8.43 | Shop at ECS Tuning | |||||
| 05 | Vent screw | M10X1-SW | 1 | 17111712788 | $3.17 | Shop at ECS Tuning | ||||
| 06 | Coolant hose | 1 | 17127515501 | $26.88 | +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 06 | Coolant hose | 1 | 17127556614 | $32.37 | +core | Shop at ECS Tuning | ||||
| 07 | Clamp | 1 | 07137512545 | $5.05 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Coolant hose | 1 | 17121475574 | $32.37 | +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 09 | Coolant hose | 1 | 17127541094 | $32.37 | +core | Shop at ECS Tuning | ||||
| 10 | Hose clamp | D=44MM | 1 | 17127520888 | $2.37 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
