Charge-air cooler for BMW MINI R53 Cooper S

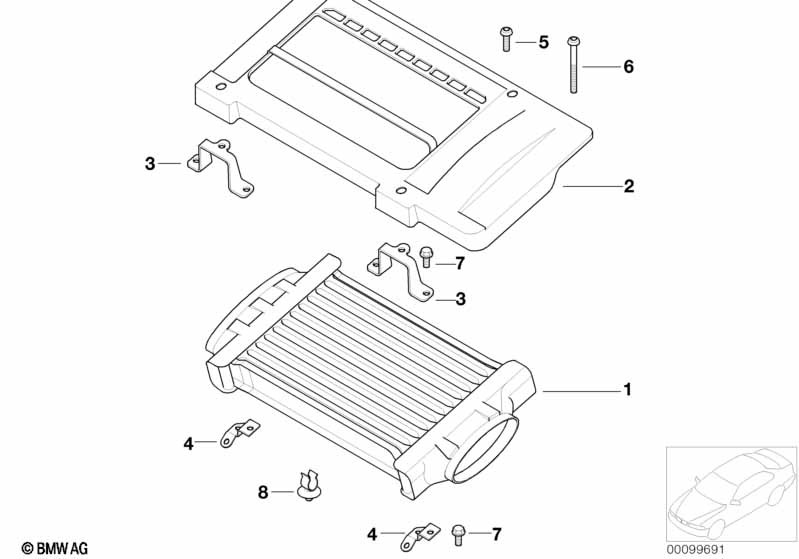

This Charge-air cooler technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge-air cooler | 1 | 11651515368 | $298.98 | Shop at ECS Tuning | |||||
| 02 | Sealing plate, charge-air cooler | 1 | 11651524539 | $50.88 | +core | Shop at ECS Tuning | ||||
| For vehicles with John Cooper Works Kit |
S3ALA=Yes |
|||||||||
| 02 | Sealing plate, charge-air cooler | 1 | 17517556988 | $192.81 | Shop at ECS Tuning | |||||
| 03 | Support | 2 | 17517511947 | $11.35 | Shop at ECS Tuning | |||||
| 04 | Bracket, charge-air cooler | 2 | 17512467424 | Shop at ECS Tuning | ||||||
| 05 | Torx bolt | M6X18-10.9-ZNS3 | 2 | 17517552373 | $2.15 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | M6X60-10.9-ZNS3 | 2 | 17517552372 | $2.88 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12 | 6 | 07130782486 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Clip | 1 | 11/2002 | 13317515781 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Clip | 1 | 17517525708 | $1.17 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R53 Cooper S Charge-air cooler?
- This technical diagram illustrates the Charge-air cooler within the Radiator group for the MINI R53 Cooper S. It provides a detailed exploded view of the components, identifying key parts such as the Charge-air cooler (Part #11651515368).
- Which models use the hardware listed in this Charge-air cooler?
- The hardware and components featured in the Charge-air cooler are specific to the MINI R53 Cooper S. These technical specifications ensure that parts like the Charge-air cooler (11651515368) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Charge-air cooler assembly?
- Each item in the Charge-air cooler corresponds to the numbered list below the illustration. For the MINI R53 Cooper S, you can identify the Charge-air cooler by locating its position on the schematic, which then links to the official BMW part number 11651515368 for the Radiator section.
