Charge-air cooling for BMW MINI R53 Cooper S

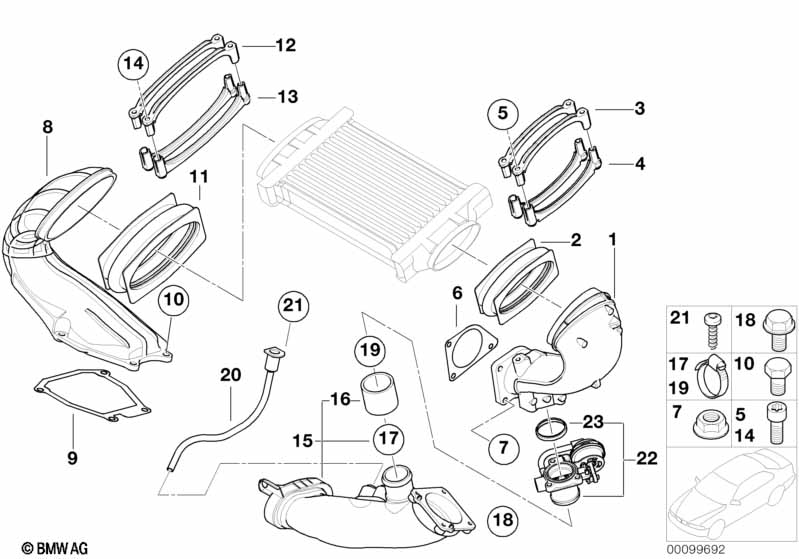

This Charge-air cooling technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air duct | 1 | 17511524536 | $167.55 | +core | Shop at ECS Tuning | ||||
| 02 | Rubber boot | 1 | 17517639960 | +core | Shop at ECS Tuning | |||||
| 03 | Clamp | 2 | 17511516835 | $10.22 | Shop at ECS Tuning | |||||
| 04 | Clamp | 2 | 17511516836 | $10.22 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | M6X45-10.9-ZNS | 4 | 17517519976 | $1.55 | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 17511524319 | $1.98 | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | AM7 ZNNIV SI | 3 | 07129905541 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Air duct | 1 | 17511523431 | $120.72 | +core | Shop at ECS Tuning | ||||
| 09 | Gasket | 1 | 17511520044 | $5.68 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X22 | 4 | 07137512996 | $6.35 | Shop at ECS Tuning | ||||
| 11 | Rubber boot | 1 | 17517639959 | +core | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 17512475120 | Shop at ECS Tuning | ||||||
| 13 | Clamp | 2 | 17512475121 | Shop at ECS Tuning | ||||||
| 14 | Torx bolt | M6X45-10.9-ZNS | 4 | 17517519976 | $1.55 | Shop at ECS Tuning | ||||
| 15 | Intake duct | 1 | 17511524439 | $84.32 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 15 | Intake duct | 1 | 17517541096 | $84.32 | Shop at ECS Tuning | |||||
| 16 | Hose | 1 | 17511524538 | $8.10 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 16 | Hose | 1 | 17517541463 | $7.85 | Shop at ECS Tuning | |||||
| 17 | Hose clamp | 1 | 11651521321 | $5.47 | Shop at ECS Tuning | |||||
| 18 | Screw | 1 | 11280863050 | $1.12 | Shop at ECS Tuning | |||||
| 19 | Hose clamp | 1 | 11651521321 | $5.47 | Shop at ECS Tuning | |||||
| 20 | Tubing for manifold air pressure sensor | 1 | 11651504943 | $17.83 | +core | Shop at ECS Tuning | ||||
| 21 | Screw | M4X0.7X16 | 2 | 07137513000 | $0.80 | Shop at ECS Tuning | ||||
| 22 | Shut-off valve | 1 | 11617568423 | $92.78 | +core | Shop at ECS Tuning | ||||
| 23 | Profile-gasket | 1 | 11617521072 | $3.56 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R53 Cooper S Charge-air cooling?
- This technical diagram illustrates the Charge-air cooling within the Radiator group for the MINI R53 Cooper S. It provides a detailed exploded view of the components, identifying key parts such as the Air duct (Part #17511524536).
- Which models use the hardware listed in this Charge-air cooling?
- The hardware and components featured in the Charge-air cooling are specific to the MINI R53 Cooper S. These technical specifications ensure that parts like the Air duct (17511524536) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Charge-air cooling assembly?
- Each item in the Charge-air cooling corresponds to the numbered list below the illustration. For the MINI R53 Cooper S, you can identify the Air duct by locating its position on the schematic, which then links to the official BMW part number 17511524536 for the Radiator section.
