Cooling System Water Hoses for BMW 7 Series E65 760i (2008)

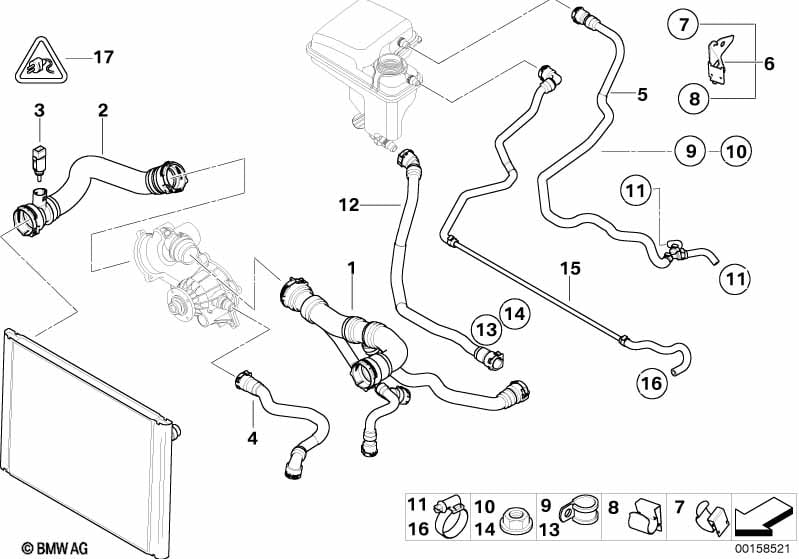

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supply hose | 1 | 17127508038 | $104.22 | +core | Shop at ECS Tuning | ||||
| 02 | Return hose | 1 | 17127526616 | $43.58 | +core | Shop at ECS Tuning | ||||
| 03 | Temperature sensor, coolant | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 04 | Return pipe | 1 | 17127508042 | $31.60 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Vent pipe | 1 | 17127508041 | $107.30 | +core | Shop at ECS Tuning | ||||
| 06 | Bracket right | 1 | 17127571931 | Shop at ECS Tuning | ||||||
| 07 | Cable clamp | 1 | 08/2024 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 07 | Clip | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 61278662930 | Shop at ECS Tuning | ||||||
| 09 | Pipe clamp | 1 | 17127521441 | $0.84 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Return pipe | 1 | 17127508043 | $31.60 | ENDED, +core | Shop at ECS Tuning | ||||
| 13 | Pipe clamp | 1 | 17127515346 | $1.17 | Shop at ECS Tuning | |||||
| 14 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 15 | Vent pipe | 1 | 17127508040 | $47.63 | +core | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 17 | Socket housing | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
