Power steering cooler for BMW 5 Series E60 525xi (2007)

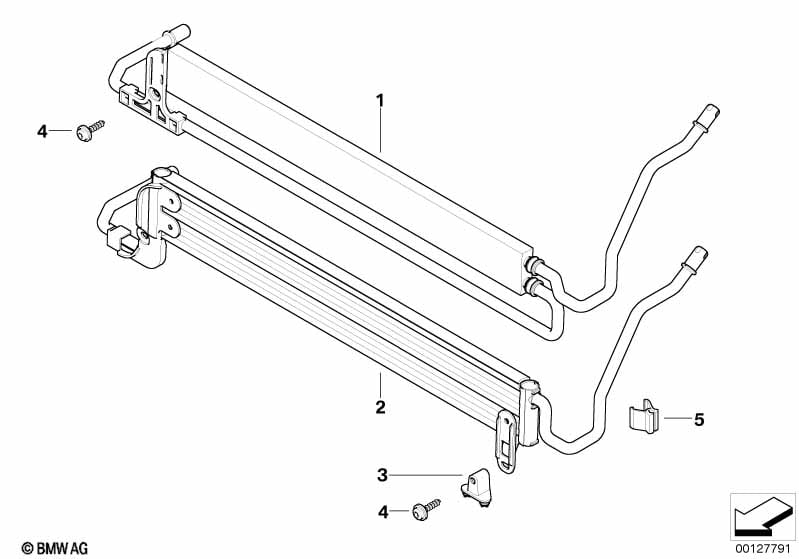

This Power steering cooler technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active steering |
S217A=No |
|||||||||
| 01 | Power steering cooler | 1 | 17217559960 | $131.65 | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 02 | Power steering cooler | 1 | 17217519215 | $303.58 | Shop at ECS Tuning | |||||
| 03 | Bracket, power-steering cooler | 1 | 17117523262 | $1.57 | Shop at ECS Tuning | |||||
| 04 | Screw self-tapping | D6X20 ZNS3 | 2 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 17217507980 | $6.88 | Shop at ECS Tuning | |||||
