Cooling System Water Hoses for BMW 5 Series E61 525i (2004)

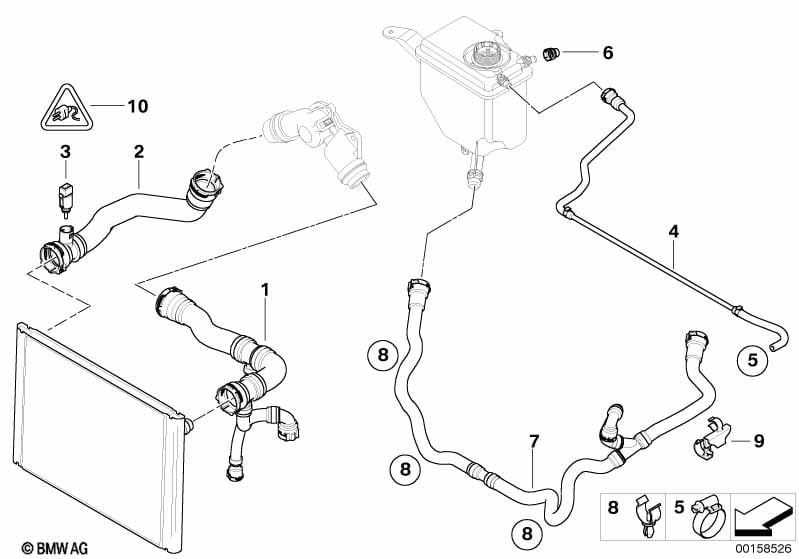

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission |
S205A=Yes |
||||||||
| 01 | Supply hose | 1 | 17127519255 | $87.15 | +core | Shop at ECS Tuning | ||||
| 02 | Return hose | 1 | 17127519257 | $43.58 | +core | Shop at ECS Tuning | ||||
| 03 | Temperature sensor, coolant | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 04 | Vent pipe | 1 | 17127519247 | $35.87 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Blind plug | D=8 | 1 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| 07 | Return hose | 1 | 17127519258 | $101.03 | +core | Shop at ECS Tuning | ||||
| 08 | Hose clamp | 5 | 17127533721 | $1.18 | Shop at ECS Tuning | |||||
| 09 | Bracket, coolant hose | 1 | 17127549717 | $5.77 | Shop at ECS Tuning | |||||
| 10 | Socket housing | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
