Transmission oil cooler line for BMW 5 Series E60 530i (2005)

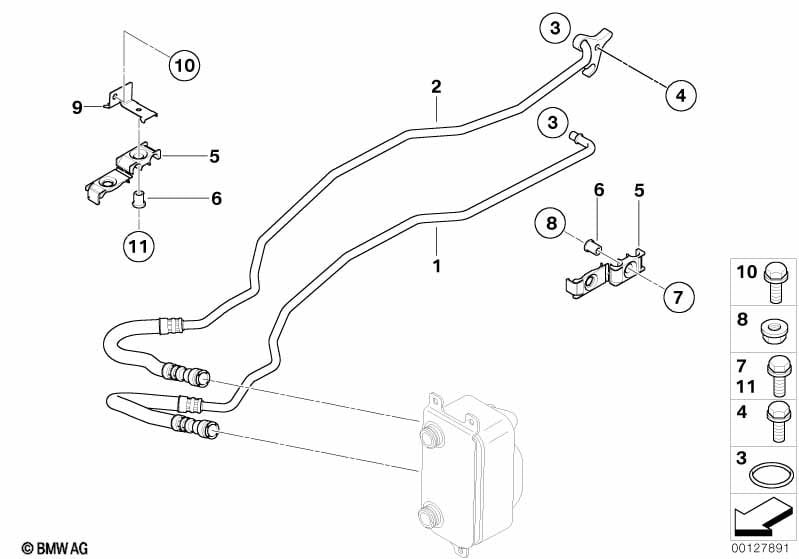

This Transmission oil cooler line technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Oil cooling pipe inlet | 1 | 17227519267 | $107.00 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 01 | Oil cooling pipe inlet | 1 | 17227519267 | $107.00 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 01 | Oil cooling pipe inlet | 1 | 17227519267 | $107.00 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 02 | Oil cooling pipe outlet | 1 | 17227519268 | $107.00 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 02 | Oil cooling pipe outlet | 1 | 17227519268 | $107.00 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 02 | Oil cooling pipe outlet | 1 | 17227519268 | $107.00 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 03 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 03 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 03 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 04 | Screw | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 04 | Screw | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 04 | Screw | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 05 | Bracket oil pipe | 2 | 17227519270 | $3.52 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 05 | Bracket oil pipe | 2 | 17227519270 | $3.52 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 05 | Bracket oil pipe | 2 | 17227519270 | $3.52 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 06 | Spacer sleeve | 2 | 17227525819 | $2.57 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 06 | Spacer sleeve | 2 | 17227525819 | $2.57 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 06 | Spacer sleeve | 2 | 17227525819 | $2.57 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 07 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 07 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 07 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 08 | Hex nut | 1 | 12/2006 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Hex nut | 1 | 02/2007 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 08 | Hex nut | 1 | 12/2006 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Hex nut | 1 | 02/2007 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 08 | Hex nut | 1 | 12/2006 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Hex nut | 1 | 02/2007 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 09 | Bracket oil pipe | 1 | 17227519269 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 09 | Bracket oil pipe | 1 | 17227519269 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 09 | Bracket oil pipe | 1 | 17227519269 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 10 | Hex bolt with washer | M8X18-Z1-ZNS3 | 1 | 07119902906 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 10 | Hex bolt with washer | M8X18-Z1-ZNS3 | 1 | 07119902906 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 10 | Hex bolt with washer | M8X18-Z1-ZNS3 | 1 | 07119902906 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 11 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 11 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 11 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
