Mounting parts f radiator for BMW 5 Series E60 LCI 520d (2008)

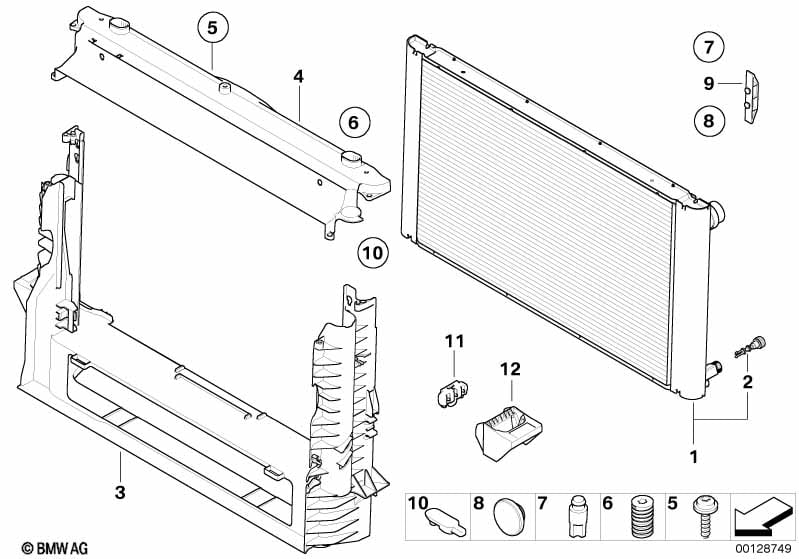

This Mounting parts f radiator technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | 1 | 17117794836 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Radiator | 1 | 17117795878 | Shop at ECS Tuning | ||||||
| 02 | Drain plug radiator | 1 | 09/2008 | 17112247346 | $9.22 | Shop at ECS Tuning | ||||
| 03 | Module carrier | 1 | 17117787443 | $119.90 | Shop at ECS Tuning | |||||
| 04 | cover, module carrier | 1 | 03/2008 | 17117787830 | $29.18 | Shop at ECS Tuning | ||||
| 05 | Screw self-tapping | D6X20 ZNS3 | 5 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Bracket f.radiator | 2 | 17117545864 | $6.13 | Shop at ECS Tuning | |||||
| 07 | Compensator | 2 | 17117519207 | $0.42 | Shop at ECS Tuning | |||||
| 08 | Spacer holder | 2 | 17117519206 | $0.32 | Shop at ECS Tuning | |||||
| 09 | Compensator | 2 | 17117520336 | $3.22 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 09 | Spacer | 2 | 17117540680 | $2.18 | Shop at ECS Tuning | |||||
| 10 | Rubber Mounting | 2 | 17117530985 | $2.10 | Shop at ECS Tuning | |||||
| 11 | Rubber Mounting | 2 | 17117542516 | $8.72 | Shop at ECS Tuning | |||||
| 12 | Lower cooler bracket | 2 | 17117542517 | $6.17 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
