Charge-air cooler for BMW 5 Series E60 530d (2007)

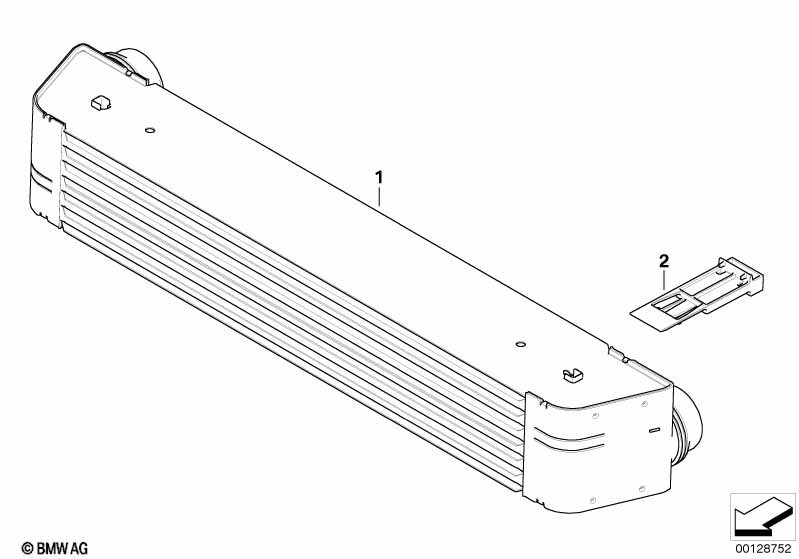

This Charge-air cooler technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge-air cooler | 1 | 17517795823 | Shop at ECS Tuning | ||||||
| 02 | Bracket, fan housing | 2 | 17117788324 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530d Charge-air cooler?
- This technical diagram illustrates the Charge-air cooler within the Radiator group for the 5 Series E60 530d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Charge-air cooler (Part #17517795823).
- Which models use the hardware listed in this Charge-air cooler?
- The hardware and components featured in the Charge-air cooler are specific to the 5 Series E60 530d produced during 2007. These technical specifications ensure that parts like the Charge-air cooler (17517795823) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Charge-air cooler assembly?
- Each item in the Charge-air cooler corresponds to the numbered list below the illustration. For the 5 Series E60 530d, you can identify the Charge-air cooler by locating its position on the schematic, which then links to the official BMW part number 17517795823 for the Radiator section.
