Cooling water expansion tank for BMW 5 Series E60 LCI 530xd (2009)

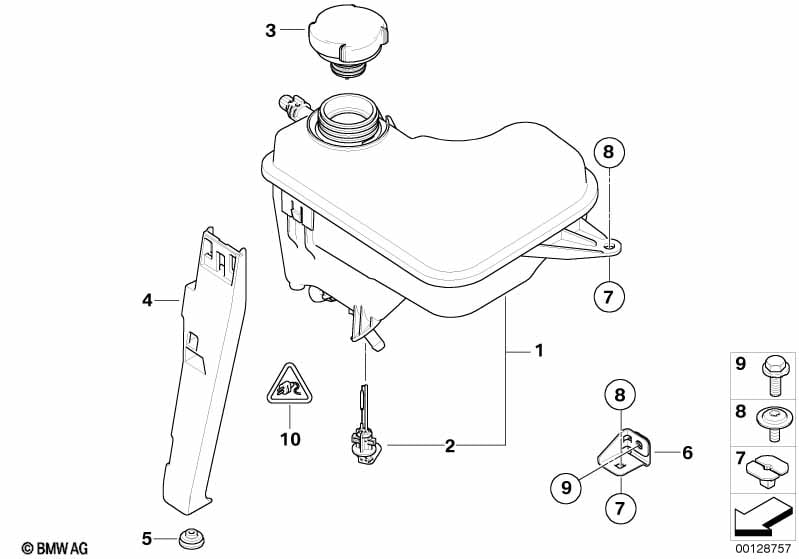

This Cooling water expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 17137800292 | $88.52 | Shop at ECS Tuning | |||||
| 02 | Level switch, coolant | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| 03 | Radiator cap | 1,4BAR | 1 | 17137639023 | Shop at ECS Tuning | |||||
| 04 | Rod | 1 | 17137788293 | Shop at ECS Tuning | ||||||
| 05 | Grommet | 1 | 17137789374 | Shop at ECS Tuning | ||||||
| 06 | Bracket expansion tank | 1 | 17137789363 | Shop at ECS Tuning | ||||||
| 07 | Expanding nut | BLACK | 2 | 63128374670 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Torx bolt | K50 X 18 | 2 | 17117510907 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
