Cooling System Water Hoses for BMW 5 Series E61 530d (2005)

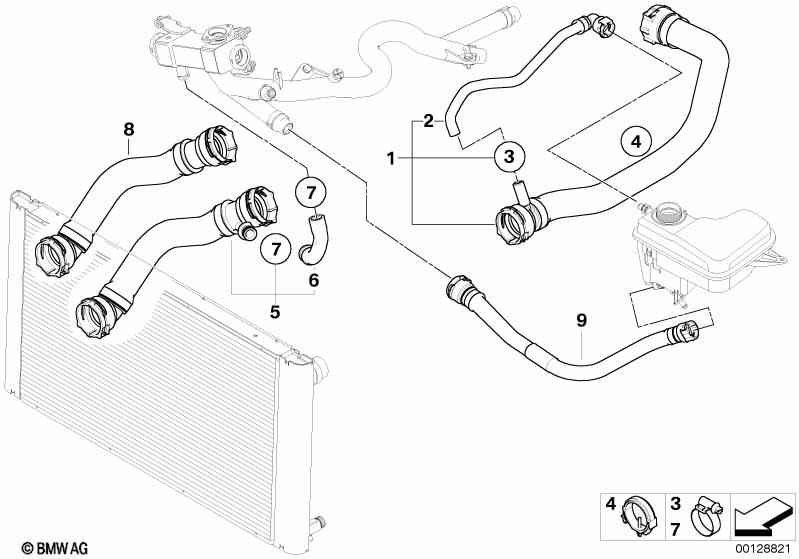

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Manual Transmission |
=Yes |
||||||||
| 01 | Coolant hose | 1 | 17127787449 | $101.03 | +core | Shop at ECS Tuning | ||||
| 02 | Vent hose | 1 | 17127787465 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 05 | Coolant hose | 1 | 17127789723 | $54.57 | +core | Shop at ECS Tuning | ||||
| 06 | Hose, EGR radiator fork | 1 | 17127789600 | +core | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| For vehicles with EU3 exhaust emissions standard |
S169A=Yes |
|||||||||
| 08 | Coolant hose | 1 | 17127787451 | +core | Shop at ECS Tuning | |||||
| 09 | Coolant hose | 1 | 17127787455 | +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
