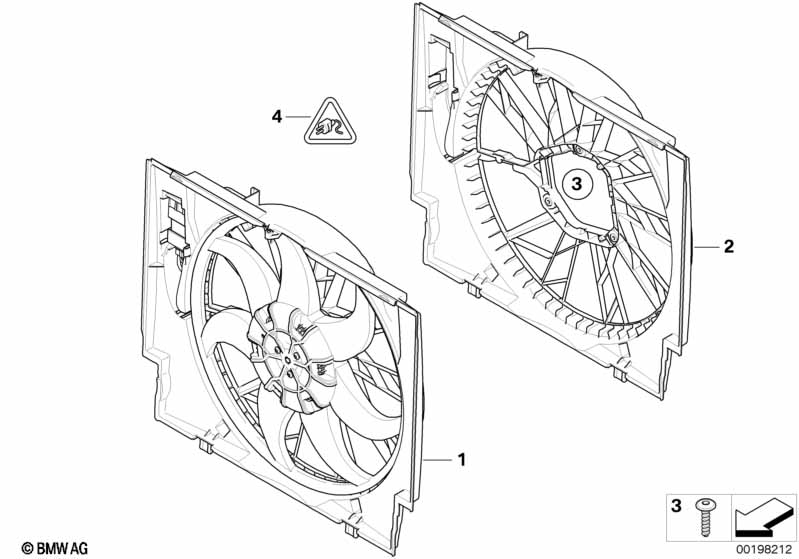

Fan shroud/fan for BMW 5 Series E60 LCI 520d (2008)
This Fan shroud/fan technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan housing with fan | 400W | 1 | 09/2006 | 17428508251 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable or Hot-climate version |
S235A=Yes S823A=Yes |
|||||||||
| 01 | Fan housing with fan | 600W | 1 | 09/2006 | 17427801657 | $621.50 | Shop at ECS Tuning | |||
| 02 | Fan shroud | 1 | 09/2006 | 17427803064 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable or Hot-climate version |
S235A=Yes S823A=Yes |
|||||||||
| 02 | Fan shroud | 1 | 09/2006 | 17427791548 | Shop at ECS Tuning | |||||
| 03 | Screw | M5X12MM | 3 | 09/2006 | 17117587715 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Fan housing with fan | 600W | X | 09/2006 | 17427801657 | $621.50 | Shop at ECS Tuning | |||
| 04 | Socket housing | 4 POL. | 1 | 09/2006 | 61136900536 | $4.20 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 09/2006 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | ||
| -- | Plug connection female LSK8 | 4-6MM² ELA | 2 | 09/2006 | 12521436650 | $2.58 | SI 2 02 05(194) | Shop at ECS Tuning | ||
| -- | Single conductor seal | 0,75-1,0MM² | 2 | 09/2006 | 12521748973 | $0.13 | Shop at ECS Tuning | |||
| -- | Grommet | 4MM² | 2 | 09/2006 | 12527505634 | $3.47 | Shop at ECS Tuning | |||
Notes
- SI = Service Information
