Fan shroud/fan for BMW 5 Series E60 525i (2007)

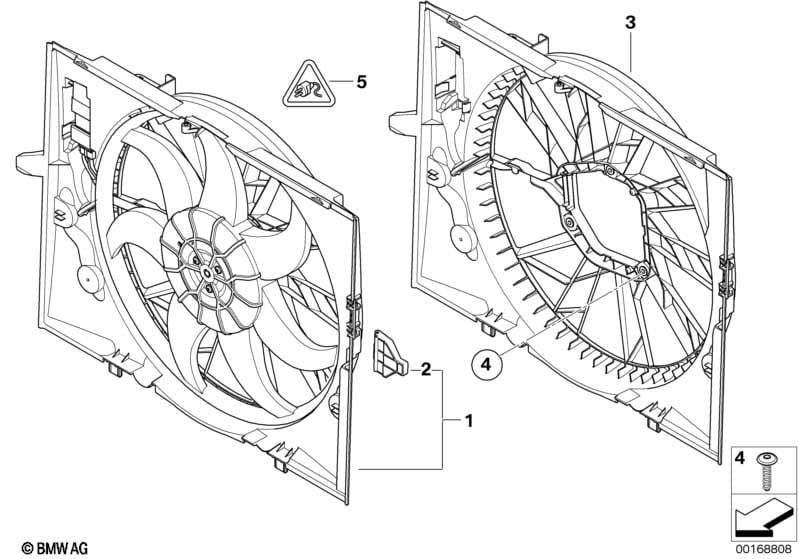

This Fan shroud/fan technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan housing with fan | 400W | 1 | 09/2005 | 17427603762 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Fan housing with fan | 400W | 1 | 09/2005 | 17427603762 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=Yes S235A=Yes S823A=Yes |
|||||||||
| 01 | Fan housing with fan | 600W | 1 | 07/2005 | 17427543282 | $621.50 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=Yes S235A=Yes S823A=No |
|||||||||
| 01 | Fan housing with fan | 600W | 1 | 07/2005 | 17427543282 | $621.50 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=Yes S235A=No S823A=Yes |
|||||||||
| 01 | Fan housing with fan | 600W | 1 | 07/2005 | 17427543282 | $621.50 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=No S235A=Yes S823A=Yes |
|||||||||
| 01 | Fan housing with fan | 600W | 1 | 07/2005 | 17427543282 | $621.50 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=No S235A=Yes S823A=No |
|||||||||
| 01 | Fan housing with fan | 600W | 1 | 07/2005 | 17427543282 | $621.50 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=No S235A=No S823A=Yes |
|||||||||
| 01 | Fan housing with fan | 600W | 1 | 07/2005 | 17427543282 | $621.50 | Shop at ECS Tuning | |||
| 02 | Bracket, fan housing | 1 | 17117507979 | $5.82 | Shop at ECS Tuning | |||||
| 03 | Fan shroud | 1 | 09/2005 | 17427540684 | $187.35 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 03 | Fan shroud | 1 | 09/2005 | 17427540684 | $187.35 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=Yes S235A=Yes S823A=Yes |
|||||||||
| 03 | Fan shroud | 1 | 07/2005 | 17417543283 | $187.35 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=Yes S235A=Yes S823A=No |
|||||||||
| 03 | Fan shroud | 1 | 07/2005 | 17417543283 | $187.35 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=Yes S235A=No S823A=Yes |
|||||||||
| 03 | Fan shroud | 1 | 07/2005 | 17417543283 | $187.35 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=No S235A=Yes S823A=Yes |
|||||||||
| 03 | Fan shroud | 1 | 07/2005 | 17417543283 | $187.35 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=No S235A=Yes S823A=No |
|||||||||
| 03 | Fan shroud | 1 | 07/2005 | 17417543283 | $187.35 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Towing hitch, detachable and Hot-climate version |
S205A=No S235A=No S823A=Yes |
|||||||||
| 03 | Fan shroud | 1 | 07/2005 | 17417543283 | $187.35 | Shop at ECS Tuning | ||||
| 04 | Screw self-tapping | 5X1,23X10 | 3 | 07/2005 | 17427514831 | $1.12 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Fan housing with fan | 600W | X | 07/2005 | 17427543282 | $621.50 | Shop at ECS Tuning | |||
| 05 | Pin terminal | 3 POL. | 1 | 61136900541 | $7.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Plug connection female with lead LSK8 | 10MM² ELA 500MM | 1 | 12520144161 | $9.53 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Plug connection female LSK8 | 2,5-4,0MM² | 1 | 12527508006 | $3.70 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Fan housing with fan | 600W | X | 17427543282 | $621.50 | Shop at ECS Tuning | ||||
| 05 | Socket housing | 4 POL. | 1 | 61136900536 | $4.20 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Plug connection female LSK8 | 4-6MM² ELA | 2 | 12521436650 | $2.58 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Single conductor seal | 0,75-1,0MM² | 2 | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Grommet | 4MM² | 2 | 12527505634 | $3.47 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Fan housing with fan | 600W | X | 17427543282 | $621.50 | Shop at ECS Tuning | ||||
