Cooling System Water Hoses for BMW 3 Series E90 320d (2007)

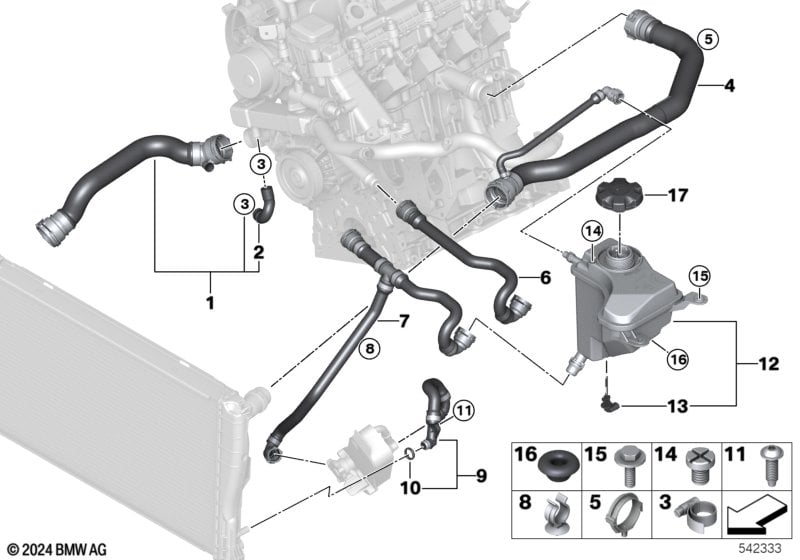

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Parts descriptions which end with a hyphen ( - ) are supplemented with the description comment (see parts information). |
|||||||||
| 01 | Hose, radiator bottom - coolant pump - | 1 | 17127789721 | +core | Shop at ECS Tuning | |||||
| 02 | Hose, EGR radiator fork | 1 | 17127789600 | +core | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Hose, cylinder head - radiator - upper - | 1 | 17127805458 | +core | Shop at ECS Tuning | |||||
| 05 | Hose clamp | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 06 | Hose, expansion tank-return pipe | 1 | 17127789590 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 07 | Hose, expansion tank- | 1 | 17127789592 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | 1 | 02/2008 | 07147506219 | $0.91 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 09 | Hose, engine oil cooler | 1 | 17117521066 | $26.22 | Shop at ECS Tuning | |||||
| 10 | O-ring | 14,5X2,5 | 1 | 17111711987 | $1.73 | Shop at ECS Tuning | ||||
| 11 | Screw self-tapping | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 12 | Expansion tank | 1 | 17138570079 | Shop at ECS Tuning | ||||||
| 13 | Level switch, coolant | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| 14 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X20-U2-8.8 | 2 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Grommet | 1 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 17 | Screw cap for expansion tank | 1 | 17117639020 | Shop at ECS Tuning | ||||||
