Cooling system - water hoses for BMW MINI R53 Cooper S

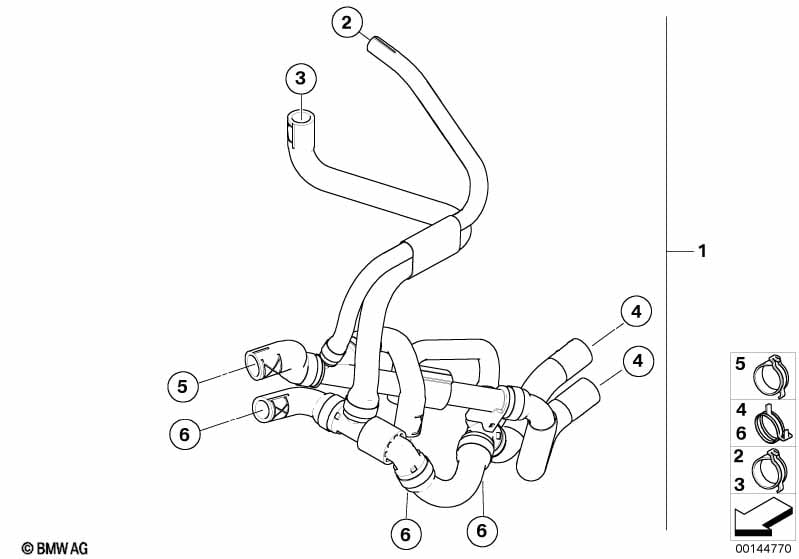

This Cooling system - water hoses technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission |
S205A=Yes |
||||||||
| 01 | Coolant hose | 1 | 17127541095 | $104.97 | +core | Shop at ECS Tuning | ||||
| 02 | Hose clamp | D=16MM | 1 | 17127518580 | $1.68 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | 1 | 17127520890 | $2.37 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | D=25MM | 2 | 17127524913 | $2.37 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | D=27MM | 1 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | D=26MM | 3 | 17127515473 | $2.37 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
