Transmission oil cooler line for BMW 5 Series E60 LCI 535xi (2009)

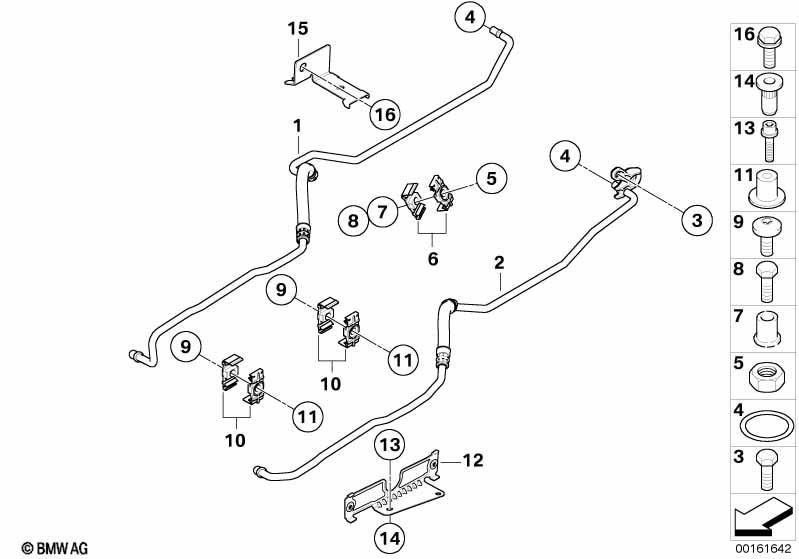

This Transmission oil cooler line technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 535xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sport automatic transmission or Automatic transmission |
S2TBA=Yes S205A=Yes |
|||||||||
| 01 | Transmission oil cooler line, flow | 1 | 17227560981 | $142.75 | +core | Shop at ECS Tuning | ||||
| 02 | Transmission oil cooler line, return | 1 | 17227560982 | $142.75 | +core | Shop at ECS Tuning | ||||
| 03 | Screw | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
| 04 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Bracket oil pipe | 1 | 17227519270 | $3.52 | Shop at ECS Tuning | |||||
| 07 | Spacer sleeve | 1 | 17227525819 | $2.57 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | M6X16 | 2 | 51237031088 | $2.91 | Shop at ECS Tuning | ||||
| 10 | Bracket, oil cooler line | 2 | 17227563856 | $3.47 | Shop at ECS Tuning | |||||
| 11 | Spacer sleeve | 2 | 17227563857 | $2.57 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 12 | Bracket, oil cooler line | 1 | 17117560992 | $28.29 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sport automatic transmission or Automatic transmission |
S2TBA=Yes S205A=Yes |
|||||||||
| 13 | Torx-bolt with washer | M6X20-U1-8.8 | 2 | 07129905516 | $0.96 | Shop at ECS Tuning | ||||
| 14 | Blind rivet nut, flat headed | M6 | 2 | 17117571134 | $1.10 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 15 | Bracket, oil cooler line | 1 | 17227534893 | $5.73 | Shop at ECS Tuning | |||||
| 16 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 535xi Transmission oil cooler line?
- This technical diagram illustrates the Transmission oil cooler line within the Radiator group for the 5 Series E60 LCI 535xi produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Transmission oil cooler line, flow (Part #17227560981).
- Which models use the hardware listed in this Transmission oil cooler line?
- The hardware and components featured in the Transmission oil cooler line are specific to the 5 Series E60 LCI 535xi produced during 2009. These technical specifications ensure that parts like the Transmission oil cooler line, flow (17227560981) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Transmission oil cooler line assembly?
- Each item in the Transmission oil cooler line corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 535xi, you can identify the Transmission oil cooler line, flow by locating its position on the schematic, which then links to the official BMW part number 17227560981 for the Radiator section.
