Heat exchanger for BMW 5 Series E60 LCI 535xi (2006)

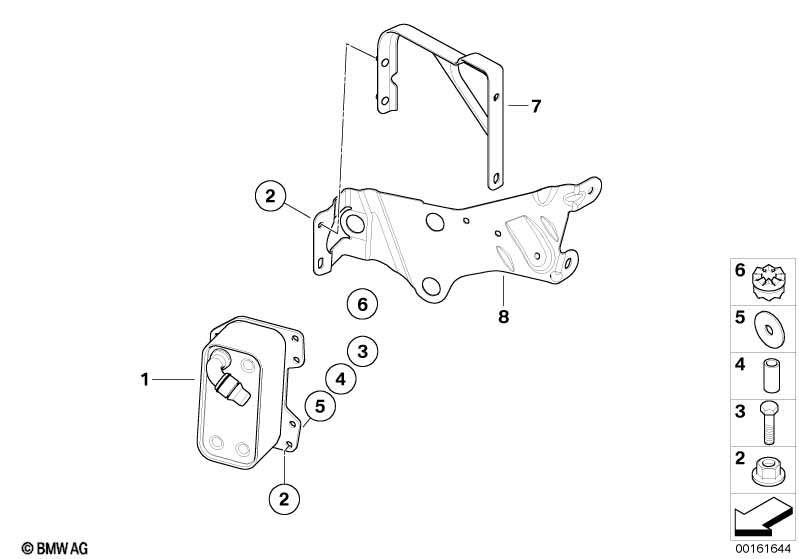

This Heat exchanger technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 535xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sport automatic transmission or Automatic transmission |
S2TBA=Yes S205A=Yes |
||||||||
| 01 | Heat exchanger | 1 | 17217560962 | $255.38 | Shop at ECS Tuning | |||||
| 02 | Hex nut | M6 | 9 | 07146988146 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Combination Allen bolt | 3 | 63129129299 | $2.23 | Shop at ECS Tuning | |||||
| 04 | Spacer sleeve | ZNS3 | 3 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 05 | Washer | 3 | 17217569977 | $1.10 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 07 | Bracket, heat exchanger | 1 | 17217565038 | $28.29 | Shop at ECS Tuning | |||||
| 08 | Bracket, heat exchanger | 1 | 17217560993 | $28.29 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 535xi Heat exchanger?
- This technical diagram illustrates the Heat exchanger within the Radiator group for the 5 Series E60 LCI 535xi produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Heat exchanger (Part #17217560962).
- Which models use the hardware listed in this Heat exchanger?
- The hardware and components featured in the Heat exchanger are specific to the 5 Series E60 LCI 535xi produced during 2006. These technical specifications ensure that parts like the Heat exchanger (17217560962) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heat exchanger assembly?
- Each item in the Heat exchanger corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 535xi, you can identify the Heat exchanger by locating its position on the schematic, which then links to the official BMW part number 17217560962 for the Radiator section.
