Cooling System Water Hoses for BMW 3 Series E91 LCI 330xd (2008)

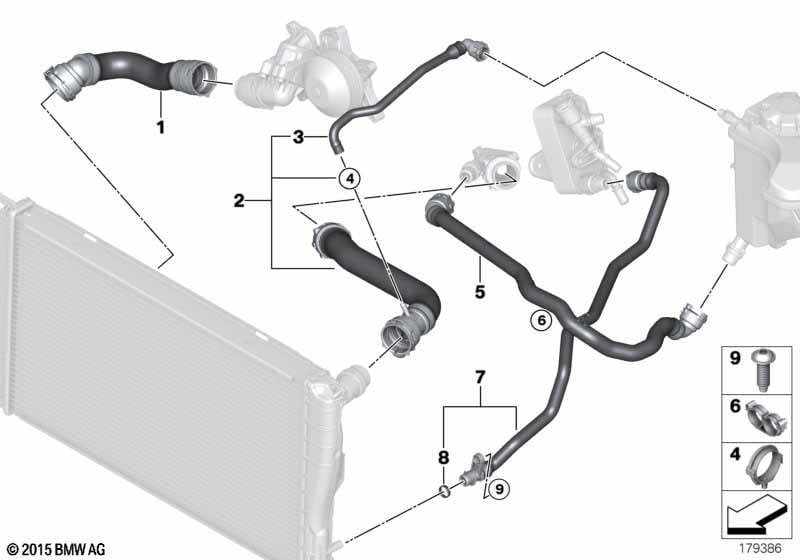

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose from radiator bottom - thermostat | 1 | 17127800100 | +core | Shop at ECS Tuning | |||||
| 02 | Hose from engine to radiator, top- | 1 | 17127800098 | +core | Shop at ECS Tuning | |||||
| 03 | Hose, fork to expansion tank | 1 | 17127803838 | $20.98 | +core | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hose coolant pump | 1 | 17127805795 | +core | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 1 | 64216951110 | Shop at ECS Tuning | ||||||
| For vehicles with Sport transmission w/ dual-plate clutch or Automatic transmission |
S2TCA=Yes S205A=Yes |
|||||||||
| 07 | Hose, radiator-heat exchanger- | 1 | 17127800106 | +core | Shop at ECS Tuning | |||||
| 08 | O-ring | 14,5X2,5 | 1 | 17111711987 | $1.73 | Shop at ECS Tuning | ||||
| 09 | Screw self-tapping | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
