Cooling System Water Hoses for BMW 3 Series E92 LCI 320xd (2013)

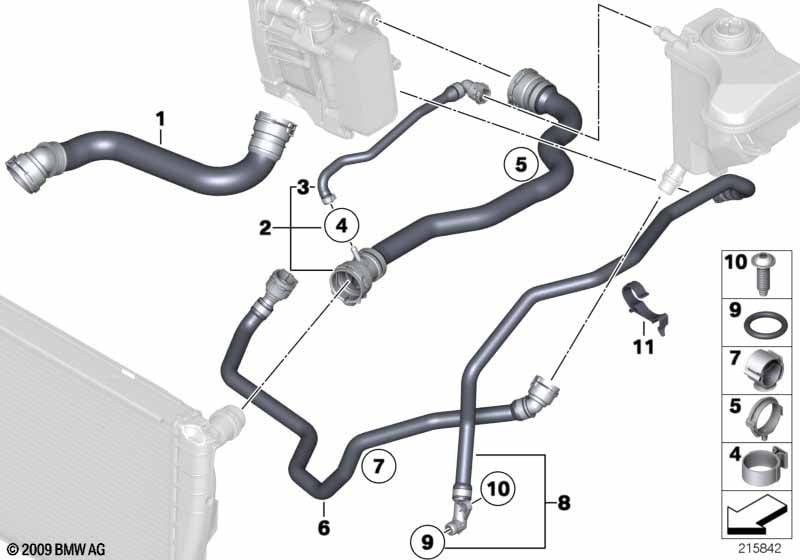

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 320xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose from radiator bottom - thermostat | 1 | 17127797258 | +core | Shop at ECS Tuning | |||||
| 02 | Hose from engine to radiator, top | 1 | 17128511623 | +core | Shop at ECS Tuning | |||||
| 03 | Hose, fork to expansion tank | 1 | 17127803838 | $20.98 | +core | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
| 06 | Coolant hose | 1 | 17127811125 | +core | Shop at ECS Tuning | |||||
| 07 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 08 | Hose, radiator-transmission oil cooler | 1 | 17128511721 | +core | Shop at ECS Tuning | |||||
| 09 | O-ring | 14,5X2,5 | 1 | 17111711987 | $1.73 | Shop at ECS Tuning | ||||
| 10 | Screw self-tapping | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 11 | Bracket, coolant hose | 1 | 17128511624 | Shop at ECS Tuning | ||||||
