Radiator for BMW 5 Series E34 525i (1995)

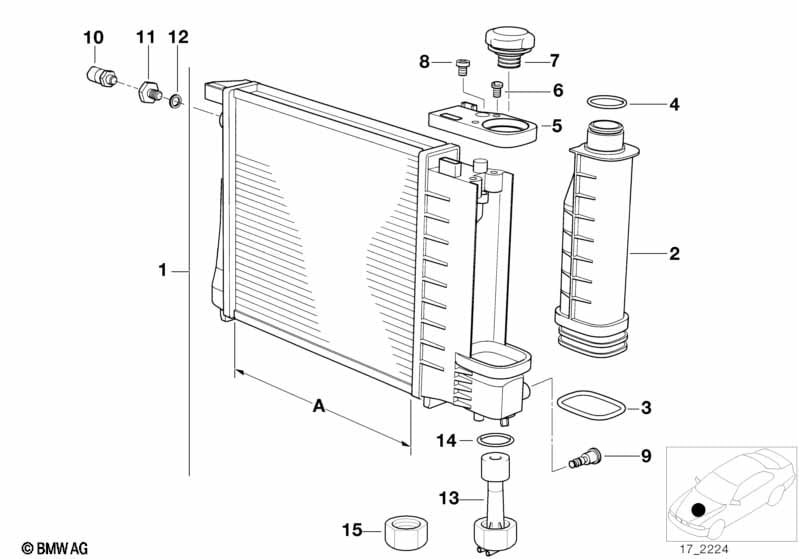

This Radiator technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | A=440MM | 1 | 17111712982 | $300.71 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Radiator | A=520MM | 1 | 17111737763 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Radiator | A=520MM | 1 | 17111737757 | $405.97 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning or Automatic air conditioning |
S530A=Yes S534A=Yes |
|||||||||
| 01 | Radiator | A=520MM | 1 | 17111737763 | Shop at ECS Tuning | |||||
| 02 | Expansion tank | 1 | 17111712835 | $49.73 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | D=77,0MM | 1 | 17211712965 | $4.37 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | D=14,5MM | 1 | 17111712966 | $2.10 | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 17111712825 | $10.53 | Shop at ECS Tuning | |||||
| 06 | Fillister-head screw | M6X16 | 2 | 17111719057 | $0.78 | Shop at ECS Tuning | ||||
| 07 | Radiator cap | 2,0BAR | 1 | 17117639022 | Shop at ECS Tuning | |||||
| 08 | Vent screw | M10X1-SW | 1 | 17111712788 | $3.17 | Shop at ECS Tuning | ||||
| 09 | Screw plug | 1 | 17111712816 | $3.70 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning or Automatic air conditioning |
S530A=Yes S534A=Yes |
|||||||||
| 10 | Double temperature switch | 91/99CEL | 1 | 61311378073 | $32.46 | SI 120787(777) | Shop at ECS Tuning | |||
| 11 | Screw plug | M14X1,5-ZN/PBX | 1 | 07119919146 | $2.35 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Levelling switch radiator | L= 95MM | 1 | 61311384739 | $32.46 | Shop at ECS Tuning | ||||
| 14 | O-ring | D=19,3X2,4 | 1 | 61311361249 | $5.13 | Shop at ECS Tuning | ||||
