Expansion tank for BMW 3 Series F35 328Li (2015)

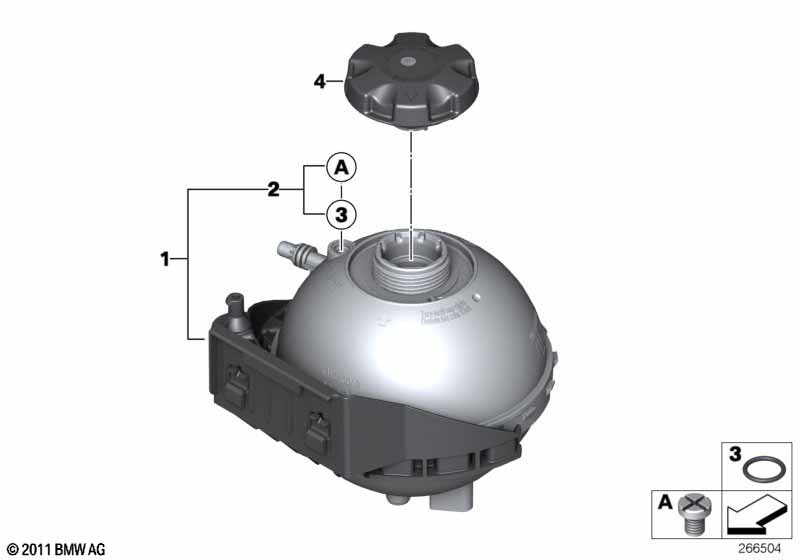

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 3 Series F35 328Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 17137642158 | Shop at ECS Tuning | ||||||
| 02 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 03 | O-ring | 9X2 | 1 | 11537793248 | $3.16 | Shop at ECS Tuning | ||||
| 04 | Screw cap for expansion tank | 1 | 17117639020 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F35 328Li Expansion tank?
- This technical diagram illustrates the Expansion tank within the Radiator group for the 3 Series F35 328Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #17137642158).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 3 Series F35 328Li produced during 2015. These technical specifications ensure that parts like the Expansion tank (17137642158) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 3 Series F35 328Li, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 17137642158 for the Radiator section.
