Cooling system coolant hoses for BMW 3 Series F31 320i (2015)
This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Coolant hose | 1 | 17127596837 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | 15,3-18,5 | 1 | 32411131346 | $0.80 | Shop at ECS Tuning | ||||
| 03 | Coolant hose | 1 | 17127596831 | +core | Shop at ECS Tuning | |||||
| 04 | Coolant hose | 1 | 17127596838 | Shop at ECS Tuning | ||||||
| 05 | Vent screw | M10 | 2 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 06 | O-ring | 9X2 | 2 | 11537793248 | $3.16 | Shop at ECS Tuning | ||||
| 07 | Coolant hose | 1 | 17127624676 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | 1 | 17127599703 | Shop at ECS Tuning | ||||||
| 09 | Coolant hose | 1 | 17127596839 | Shop at ECS Tuning | ||||||
| 10 | Hose clamp | 2 | 17127615464 | Shop at ECS Tuning | ||||||
| 11 | Coolant hose | 1 | 17127596841 | Shop at ECS Tuning | ||||||
| 12 | Coolant hose | 1 | 17127600554 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F31 320i Cooling system coolant hoses?

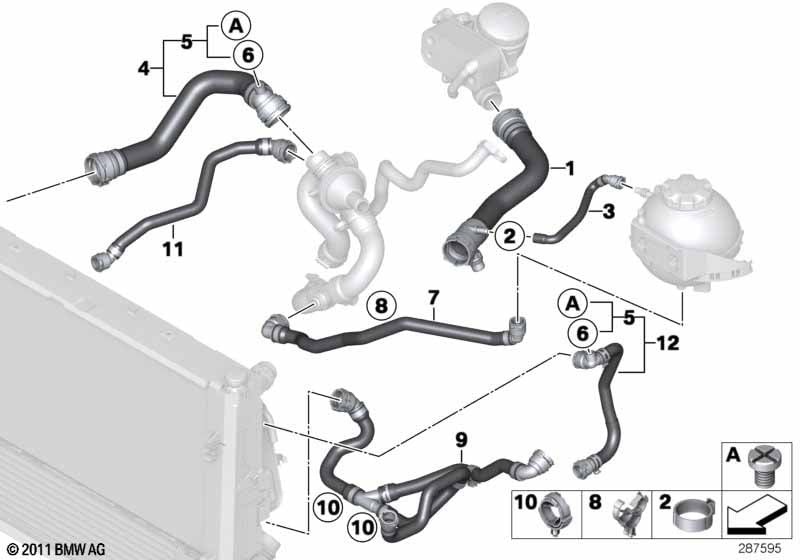

- This technical diagram illustrates the Cooling system coolant hoses within the Radiator group for the 3 Series F31 320i produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Coolant hose (Part #17127596837).
- Which models use the hardware listed in this Cooling system coolant hoses?
- The hardware and components featured in the Cooling system coolant hoses are specific to the 3 Series F31 320i produced during 2015. These technical specifications ensure that parts like the Coolant hose (17127596837) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system coolant hoses assembly?
- Each item in the Cooling system coolant hoses corresponds to the numbered list below the illustration. For the 3 Series F31 320i, you can identify the Coolant hose by locating its position on the schematic, which then links to the official BMW part number 17127596837 for the Radiator section.
