Cooling system coolant hoses for BMW 3 Series E90 LCI 325xi (2011)

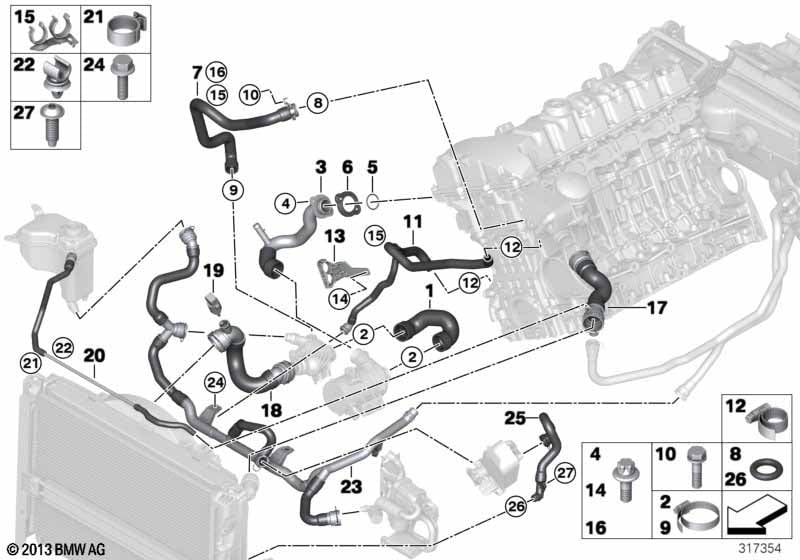

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Auxiliary heating |
S205A=Yes S536A=Yes |
||||||||
| 01 | Hose, thermostat-coolant pump | 1 | 11537521049 | $18.87 | +core | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L42-48 | 3 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 03 | Pipe, engine supply-coolant pump | 1 | 11537516414 | $119.45 | +core | Shop at ECS Tuning | ||||
| 04 | Torx screw | M6X16-ZNNIV SI | 2 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| 05 | O-ring | 1 | 11517514942 | $4.25 | Shop at ECS Tuning | |||||
| 06 | Gasket | 1 | 11537534880 | $12.02 | Shop at ECS Tuning | |||||
| 07 | Hose, cylinder head-thermostat | 1 | 11537545890 | $30.20 | +core | Shop at ECS Tuning | ||||
| 08 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| 11 | Hose, low-temperature cooling module | 1 | 17127540020 | $33.77 | +core | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 13 | Double holder | 1 | 11537545387 | $6.11 | Shop at ECS Tuning | |||||
| 14 | Torx screw | M6X16-AL | 2 | 13627530413 | $0.93 | Shop at ECS Tuning | ||||
| 15 | Spacer holder | 1 | 11537555977 | $3.58 | Shop at ECS Tuning | |||||
| 16 | Torx screw | M6X16-ZNNIV SI | 1 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Hose from engine to radiator, top | 1 | 17127531579 | $43.58 | Shop at ECS Tuning | |||||
| 18 | Hose from radiator bottom - thermostat | 1 | 17127564478 | $56.20 | +core | Shop at ECS Tuning | ||||
| 20 | Venting line radiator top | 1 | 17127618510 | +core | Shop at ECS Tuning | |||||
| 21 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 22 | Clip | D=8MM | 1 | 13311738201 | $0.62 | Shop at ECS Tuning | ||||
| 23 | Line, heater return - thermostat | 1 | 17127542132 | +core | Shop at ECS Tuning | |||||
| Transmission oil cooler consisting of black plastic tube and rubber hose |
||||||||||
| 24 | Screw self-tapping | M6X34 | 3 | 17127545785 | $0.78 | Shop at ECS Tuning | ||||
| 25 | Hose, radiator-engine oil cooler | 1 | 17117524710 | $32.78 | Shop at ECS Tuning | |||||
| 26 | O-ring | 14,5X2,5 | 1 | 17111711987 | $1.73 | Shop at ECS Tuning | ||||
| 27 | Screw self-tapping | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
