Cooling system coolant hoses for BMW 3 Series E91 LCI 320i (2012)

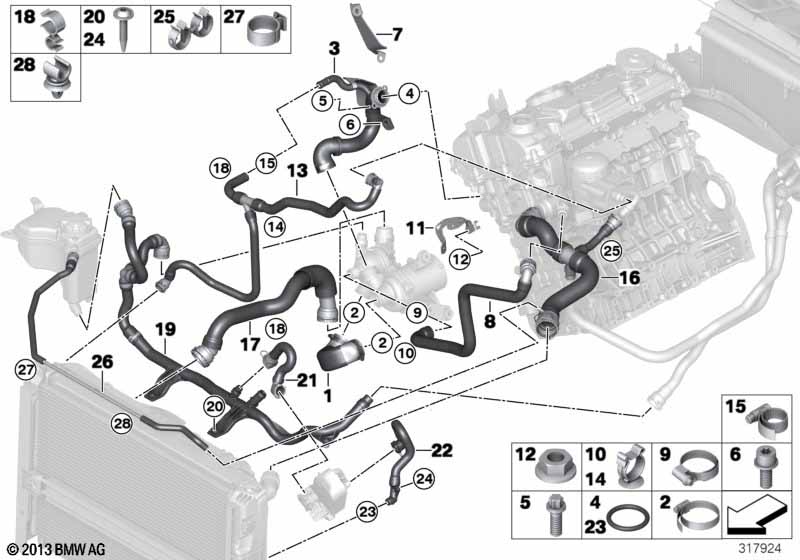

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission |
S205A=Yes |
||||||||
| 01 | Hose, thermostat-coolant pump | 1 | 11537558071 | Shop at ECS Tuning | ||||||
| 03 | Pipe, engine supply-coolant pump | 1 | 11537552389 | +core | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 03 | Pipe, engine supply-coolant pump | 1 | 11537552396 | +core | Shop at ECS Tuning | |||||
| 04 | O-ring | 1 | 11517514942 | $4.25 | Shop at ECS Tuning | |||||
| 05 | Torx screw | M6X16-ZNNIV SI | 4 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 06 | Torx-bolt with washer | M8X20 ZNNIV SI | 1 | 07129905423 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Heat resistant plate | 1 | 11537567320 | Shop at ECS Tuning | ||||||
| 08 | Hose, cylinder head-thermostat | 1 | 11537552388 | +core | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 08 | Hose, cylinder head-thermostat | 1 | 11537552395 | +core | Shop at ECS Tuning | |||||
| 09 | Hose clamp | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | 2 | 07147525090 | $1.13 | Shop at ECS Tuning | |||||
| 11 | Holder | 1 | 11537558481 | Shop at ECS Tuning | ||||||
| 12 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 13 | Hose, low-temperature cooling module | 1 | 11537552392 | +core | Shop at ECS Tuning | |||||
| 14 | Clip | 1 | 32412283734 | $1.04 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 17 | Hose from radiator bottom - thermostat | 1 | 17127552407 | +core | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 17 | Hose from radiator bottom - thermostat | 1 | 17127566033 | +core | Shop at ECS Tuning | |||||
| 18 | Hose clamp | 40/24 | 1 | 17127510098 | $2.37 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 19 | Line, heater return - thermostat | 1 | 17127552408 | +core | Shop at ECS Tuning | |||||
| consisting of black plastic tube and rubber hose |
||||||||||
| For vehicles with Automatic transmission and Active steering |
S205A=Yes S217A=Yes |
|||||||||
| 19 | Line, heater return - thermostat | 1 | 17127566039 | +core | Shop at ECS Tuning | |||||
| consisting of black plastic tube and rubber hose |
||||||||||
| 20 | Screw self-tapping | M6X34 | 3 | 17127545785 | $0.78 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 22 | Hose, radiator-engine oil cooler | 1 | 17117524710 | $32.78 | Shop at ECS Tuning | |||||
| 23 | O-ring | 14,5X2,5 | 1 | 17111711987 | $1.73 | Shop at ECS Tuning | ||||
| 24 | Screw self-tapping | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 26 | Venting line radiator top | 1 | 17127565092 | Shop at ECS Tuning | ||||||
| 27 | Hose clamp | 13,2-15,7 | 1 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 28 | Clip | D=8MM | 2 | 13311738201 | $0.62 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 320i Cooling system coolant hoses?
- This technical diagram illustrates the Cooling system coolant hoses within the Radiator group for the 3 Series E91 LCI 320i produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Hose, thermostat-coolant pump (Part #11537558071).
- Which models use the hardware listed in this Cooling system coolant hoses?
- The hardware and components featured in the Cooling system coolant hoses are specific to the 3 Series E91 LCI 320i produced during 2012. These technical specifications ensure that parts like the Hose, thermostat-coolant pump (11537558071) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system coolant hoses assembly?
- Each item in the Cooling system coolant hoses corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 320i, you can identify the Hose, thermostat-coolant pump by locating its position on the schematic, which then links to the official BMW part number 11537558071 for the Radiator section.
