Cooling system coolant hoses for BMW 1 Series E88 120i (2013)

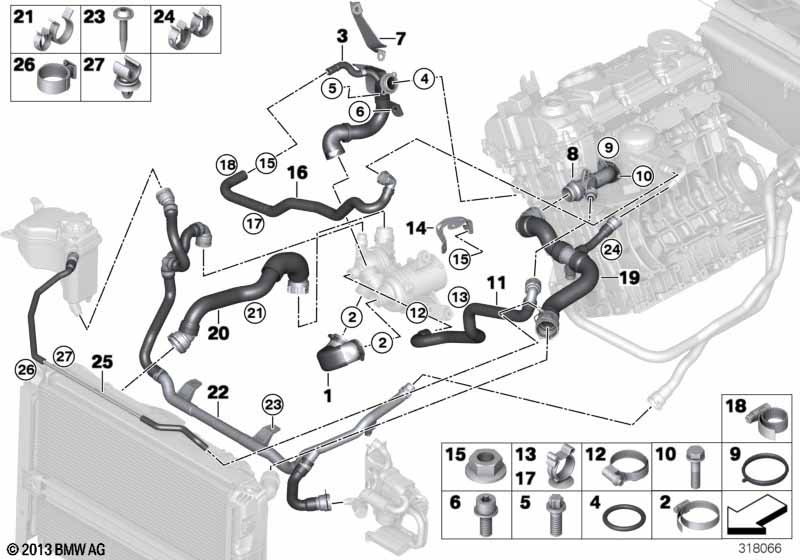

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| 01 | Hose, thermostat-coolant pump | 1 | 11537558071 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | L42-48 | 3 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 03 | Pipe, engine supply-coolant pump | 1 | 11537552389 | +core | Shop at ECS Tuning | |||||
| 04 | O-ring | 1 | 11517514942 | $4.25 | Shop at ECS Tuning | |||||
| 05 | Torx screw | M6X16-ZNNIV SI | 4 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Connector | 1 | 11537560130 | $23.47 | Shop at ECS Tuning | |||||
| 09 | Profile-gasket | 1 | 11537505806 | $2.92 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X25-ZNNIV SI | 3 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Hose, cylinder head-thermostat | 1 | 11537552388 | +core | Shop at ECS Tuning | |||||
| 12 | Hose clamp | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | 2 | 07147525090 | $1.13 | Shop at ECS Tuning | |||||
| 14 | Holder | 1 | 11537558481 | Shop at ECS Tuning | ||||||
| 15 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 16 | Water hose, inlet, thermostat | 1 | 11537552387 | Shop at ECS Tuning | ||||||
| 17 | Clip | 1 | 32412283734 | $1.04 | Shop at ECS Tuning | |||||
| 18 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 19 | Hose from engine to radiator, top | 1 | 17127566031 | +core | Shop at ECS Tuning | |||||
| 20 | Hose from radiator bottom - thermostat | 1 | 17127552407 | +core | Shop at ECS Tuning | |||||
| 21 | Hose clamp | 40/24 | 1 | 17127510098 | $2.37 | Shop at ECS Tuning | ||||
| 23 | Screw self-tapping | M6X34 | 3 | 17127545785 | $0.78 | Shop at ECS Tuning | ||||
| 24 | Hose clamp | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 25 | Venting line radiator top | 1 | 17127565092 | Shop at ECS Tuning | ||||||
| 26 | Hose clamp | 13,2-15,7 | 1 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 27 | Clip | D=8MM | 2 | 13311738201 | $0.62 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
