Cooling system coolant hoses for BMW 3 Series E93 335i (2010)
This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Auxiliary heating |
S205A=Yes S536A=No |
||||||||
| 01 | Hose, thermostat-coolant pump | 1 | 11537545665 | $18.87 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L42-48 | 3 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 03 | Pipe, engine supply-coolant pump | 1 | 11537558523 | $155.50 | +core | Shop at ECS Tuning | ||||
| 04 | Gasket | 1 | 11537545302 | $11.81 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | M6X20-ZNNIV SI | 4 | 07129905568 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| 07 | Hose, cylinder head-thermostat | 1 | 11537541992 | $30.20 | Shop at ECS Tuning | |||||
| 08 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| 10 | Hose from engine to radiator, top | 1 | 17127540127 | $56.20 | +core | Shop at ECS Tuning | ||||
| 11 | Hose from radiator bottom - thermostat | 1 | 17127564480 | $56.20 | +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission or Sport transmission w/ dual-plate clutch |
S205A=Yes S2TCA=Yes |
|||||||||
| 12 | Line, heater return - thermostat | 1 | 17127548230 | $107.30 | +core | Shop at ECS Tuning | ||||
| consisting of black plastic tube and rubber hose |
||||||||||
| 13 | Screw self-tapping | M6X34 | 3 | 17127545785 | $0.78 | Shop at ECS Tuning | ||||
| 14 | Venting line radiator top | 1 | 17127565094 | $36.08 | +core | Shop at ECS Tuning | ||||
| consisting of black plastic tube and rubber hose |
||||||||||
| 15 | Clip | D=8MM | 2 | 13311738201 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | 13,2-15,7 | 1 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | 1 | 64216918118 | $1.53 | Shop at ECS Tuning | |||||
| 18 | Coolant feed line | ZYL. 1-3 | 1 | 11537558899 | $71.68 | Shop at ECS Tuning | ||||
| 19 | Line return cooling exhaust turbocharger | ZYL. 1-3 | 1 | 11537558900 | $71.68 | Shop at ECS Tuning | ||||
| 20 | Coolant feed line | ZYL. 4-6 | 1 | 11537558901 | $71.68 | Shop at ECS Tuning | ||||
| 21 | Coolant return line | ZYL. 4-6 | 1 | 11537558902 | $71.68 | Shop at ECS Tuning | ||||
| 23 | O-ring | 11,2X2MM | 8 | 11427558936 | $1.73 | Shop at ECS Tuning | ||||
| 24 | ISA screw | M6X16-8.8-ZNS3 | 4 | 07129904588 | $0.96 | Shop at ECS Tuning | ||||
| 25 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 335i Cooling system coolant hoses?

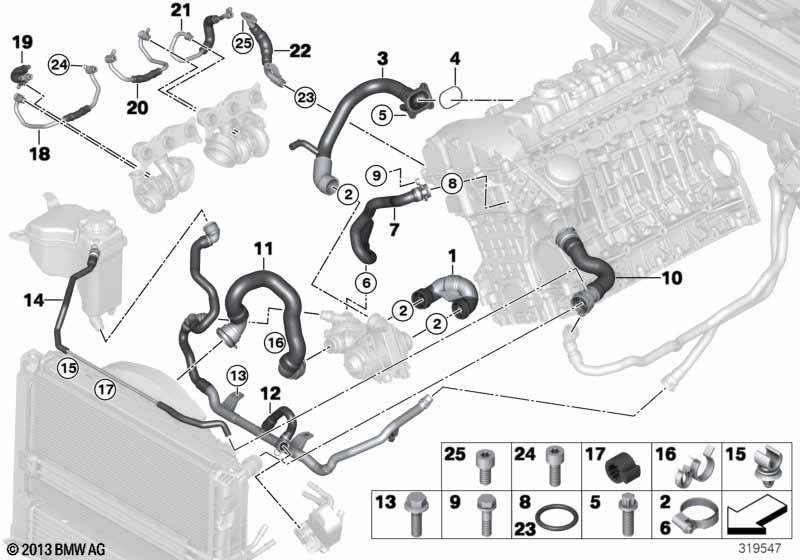

- This technical diagram illustrates the Cooling system coolant hoses within the Radiator group for the 3 Series E93 335i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Hose, thermostat-coolant pump (Part #11537545665).
- Which models use the hardware listed in this Cooling system coolant hoses?
- The hardware and components featured in the Cooling system coolant hoses are specific to the 3 Series E93 335i produced during 2010. These technical specifications ensure that parts like the Hose, thermostat-coolant pump (11537545665) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system coolant hoses assembly?
- Each item in the Cooling system coolant hoses corresponds to the numbered list below the illustration. For the 3 Series E93 335i, you can identify the Hose, thermostat-coolant pump by locating its position on the schematic, which then links to the official BMW part number 11537545665 for the Radiator section.
