Cooling system coolant hoses for BMW 1 Series E82 120d (2013)

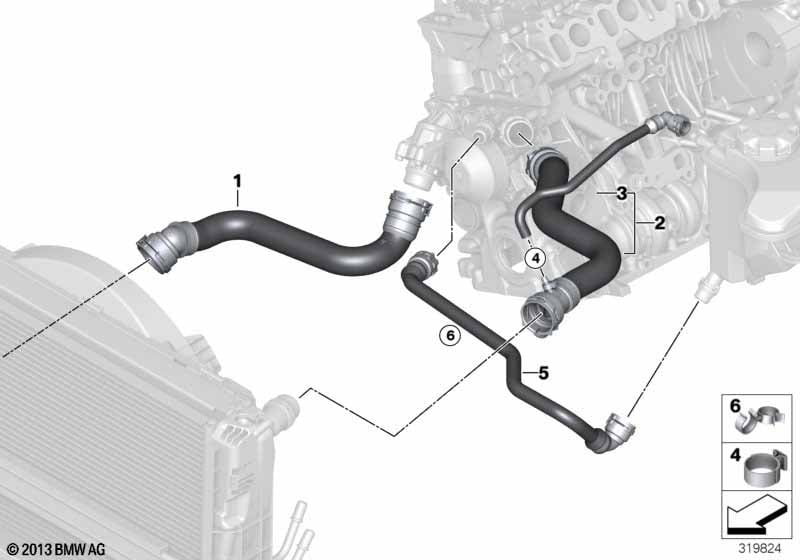

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Hot-climate version |
S205A=No S823A=No |
||||||||
| 01 | Hose from radiator bottom - thermostat | 1 | 03/2012 | 17127797258 | +core | Shop at ECS Tuning | ||||
| 02 | Hose, cylinder head - radiator - upper - | 1 | 03/2012 | 17127797257 | +core | Shop at ECS Tuning | ||||
| 03 | Hose, fork to expansion tank | 1 | 03/2012 | 17127803838 | $20.98 | +core | Shop at ECS Tuning | |||
| 04 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hose coolant pump | 1 | 17127796871 | +core | Shop at ECS Tuning | |||||
| 06 | Hose clamp, inlet | 1 | 64212229718 | $1.98 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E82 120d Cooling system coolant hoses?
- This technical diagram illustrates the Cooling system coolant hoses within the Radiator group for the 1 Series E82 120d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Hose from radiator bottom - thermostat (Part #17127797258).
- Which models use the hardware listed in this Cooling system coolant hoses?
- The hardware and components featured in the Cooling system coolant hoses are specific to the 1 Series E82 120d produced during 2013. These technical specifications ensure that parts like the Hose from radiator bottom - thermostat (17127797258) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system coolant hoses assembly?
- Each item in the Cooling system coolant hoses corresponds to the numbered list below the illustration. For the 1 Series E82 120d, you can identify the Hose from radiator bottom - thermostat by locating its position on the schematic, which then links to the official BMW part number 17127797258 for the Radiator section.
