Cooling system coolant hoses for BMW 3 Series E91 LCI 330xd (2008)
This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission |
S205A=No |
||||||||
| 01 | Hose from radiator bottom - thermostat | 1 | 17127800100 | +core | Shop at ECS Tuning | |||||
| 02 | Hose from engine to radiator, top- | 1 | 17127800098 | +core | Shop at ECS Tuning | |||||
| 03 | Hose, fork to expansion tank | 1 | 17127803838 | $20.98 | +core | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hose coolant pump | 1 | 17127805795 | +core | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 1 | 64216951110 | Shop at ECS Tuning | ||||||
| 07 | Pipe union | 2 | 11717799853 | Shop at ECS Tuning | ||||||
| 08 | Hose, inlet | 1 | 11717811171 | Shop at ECS Tuning | ||||||
| 09 | Return hose | 1 | 11717811172 | Shop at ECS Tuning | ||||||
| 10 | Hose clamp | 13,1-15,3 | 4 | 16121176918 | $1.76 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 330xd Cooling system coolant hoses?

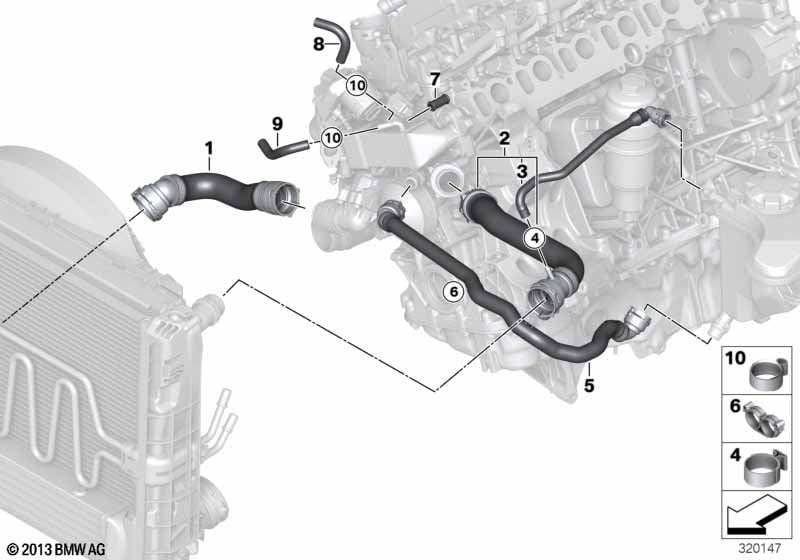

- This technical diagram illustrates the Cooling system coolant hoses within the Radiator group for the 3 Series E91 LCI 330xd produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Hose from radiator bottom - thermostat (Part #17127800100).
