Cooling system coolant hoses for BMW 5 Series E60 530i (2007)

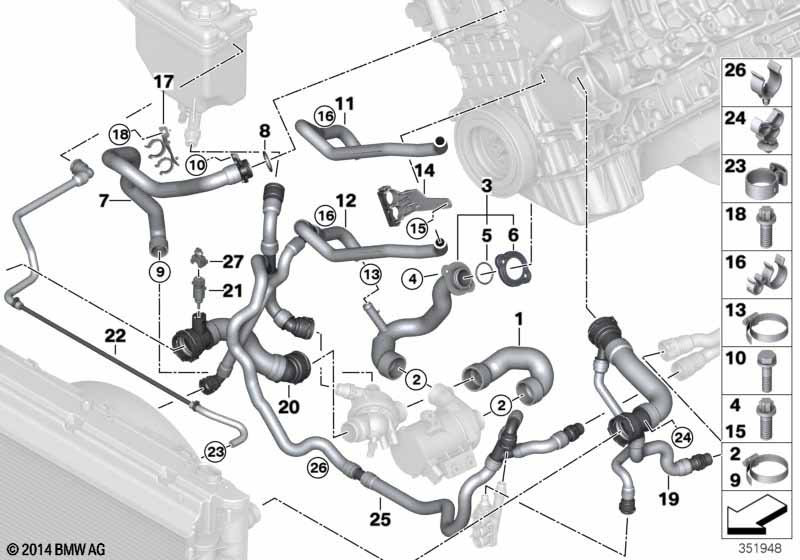

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, thermostat-coolant pump | 1 | 11537521049 | $18.87 | +core | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L42-48 | 3 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 03 | Pipe, engine supply-coolant pump | 1 | 11537516414 | $119.45 | +core | Shop at ECS Tuning | ||||
| 04 | Torx screw | M6X16-ZNNIV SI | 2 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| 05 | O-ring | 1 | 11517514942 | $4.25 | Shop at ECS Tuning | |||||
| 06 | Gasket | 1 | 11537534880 | $12.02 | Shop at ECS Tuning | |||||
| 07 | Hose, cylinder head-thermostat | 1 | 11537544638 | $33.96 | Shop at ECS Tuning | |||||
| 07 | Hose, cylinder head-thermostat | 1 | 11537545890 | $30.20 | +core | Shop at ECS Tuning | ||||
| 08 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| 11 | Hose, cooler for engine oil | 1 | 11537519494 | $23.75 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 12 | Hose, cooler for engine oil | 1 | 11537522999 | $47.49 | +core | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Double holder | 1 | 11537545387 | $6.11 | Shop at ECS Tuning | |||||
| 15 | Torx screw | M6X16-AL | 2 | 13627530413 | $0.93 | Shop at ECS Tuning | ||||
| 17 | Spacer holder | 1 | 09/2004 | 11537555977 | $3.58 | Shop at ECS Tuning | ||||
| 18 | ASA-Bolt | M6X12 | 1 | 09/2004 | 04/2007 | 07129905030 | $1.53 | Shop at ECS Tuning | ||
| For vehicles with Safety vehicle and Automatic transmission |
S106A=Yes S205A=Yes |
|||||||||
| 19 | Hose from engine to radiator, top- | 1 | 17127546064 | $76.35 | +core | Shop at ECS Tuning | ||||
| 20 | Return hose | 1 | 17127521778 | $43.58 | +core | Shop at ECS Tuning | ||||
| 21 | Temperature sensor, coolant | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 22 | Vent pipe | 1 | 17127521775 | $35.87 | Shop at ECS Tuning | |||||
| 23 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 24 | Pipe support | 1 | 11721432400 | $0.78 | Shop at ECS Tuning | |||||
| 25 | Bracket, coolant hose | 1 | 17127549717 | $5.77 | Shop at ECS Tuning | |||||
| 26 | Return hose | 1 | 09/2005 | 17127560160 | $98.12 | +core | Shop at ECS Tuning | |||
| 27 | Hose clamp | 5 | 17127533721 | $1.18 | Shop at ECS Tuning | |||||
| 28 | Socket housing | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
