Charge-air cooler for BMW 4 Series F82 M4 M4 (2017)

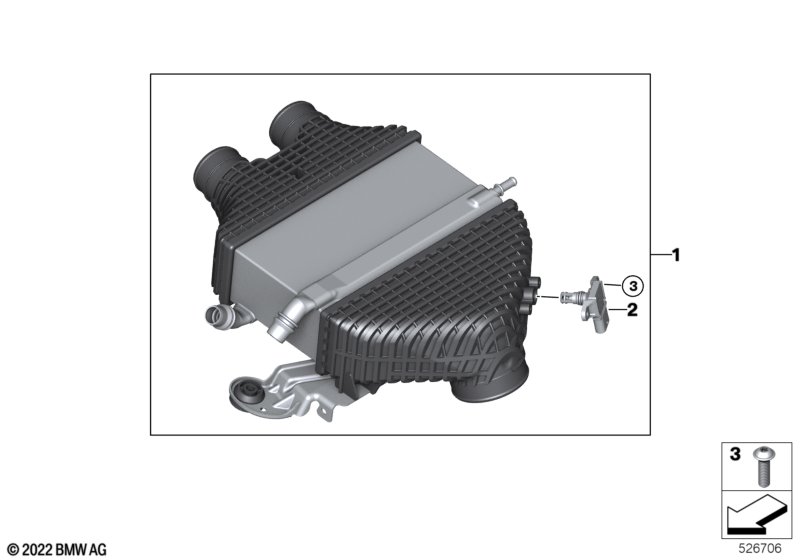

This Charge-air cooler technical drawing provides a detailed breakdown of the assembly for the 4 Series F82 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge-air cooler | 1 | 17517846235 | Shop at ECS Tuning | ||||||
| 02 | Pressure sensor | 1 | 13628644433 | Shop at ECS Tuning | ||||||
| 03 | Fillister head screw | 2 | 07146982677 | $0.47 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F82 M4 M4 Charge-air cooler?
- This technical diagram illustrates the Charge-air cooler within the Radiator group for the 4 Series F82 M4 M4 produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Charge-air cooler (Part #17517846235).
- Which models use the hardware listed in this Charge-air cooler?
- The hardware and components featured in the Charge-air cooler are specific to the 4 Series F82 M4 M4 produced during 2017. These technical specifications ensure that parts like the Charge-air cooler (17517846235) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Charge-air cooler assembly?
- Each item in the Charge-air cooler corresponds to the numbered list below the illustration. For the 4 Series F82 M4 M4, you can identify the Charge-air cooler by locating its position on the schematic, which then links to the official BMW part number 17517846235 for the Radiator section.
