Cooling system coolant hoses for BMW 2 Series F46 Gran Tourer LCI 218d

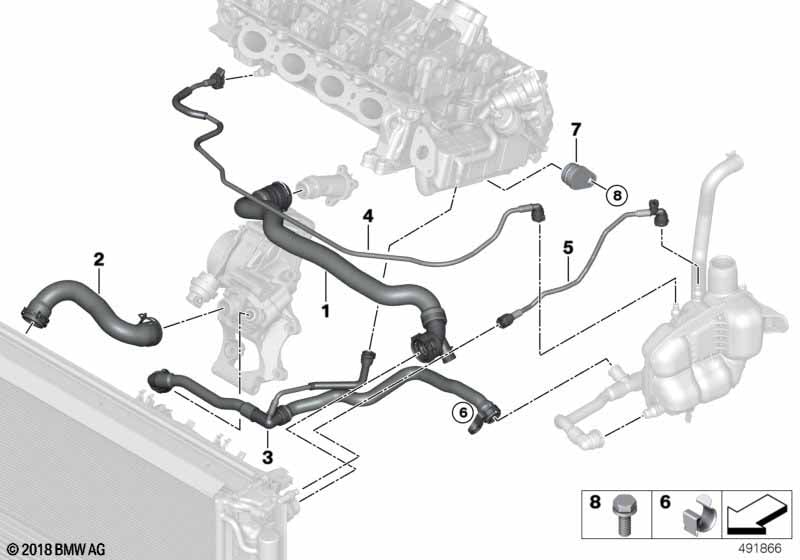

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=No |
||||||||
| 01 | Hose, radiator-engine | 1 | 11/2018 | 17127617363 | Shop at ECS Tuning | |||||
| 02 | Hose from radiator bottom - thermostat | 1 | 11/2018 | 17127617368 | Shop at ECS Tuning | |||||
| 03 | Line, heater-expansion tank-pump | 1 | 11/2018 | 17128593801 | Shop at ECS Tuning | |||||
| 04 | Pipe, expansion tank-cylinder head | 1 | 11/2018 | 17129887040 | Shop at ECS Tuning | |||||
| 05 | Pipe, radiator-expansion tank | 1 | 11/2018 | 17127617366 | Shop at ECS Tuning | |||||
| 06 | Cable clamp | 1 | 11/2018 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 06 | Clip | 15-19 | 1 | 11/2018 | 07147568538 | $3.49 | Shop at ECS Tuning | |||
| 07 | Cover | 1 | 11/2018 | 17128604579 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 11/2018 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
