Cooling system coolant hoses for BMW 5 Series F10 528i (2013)

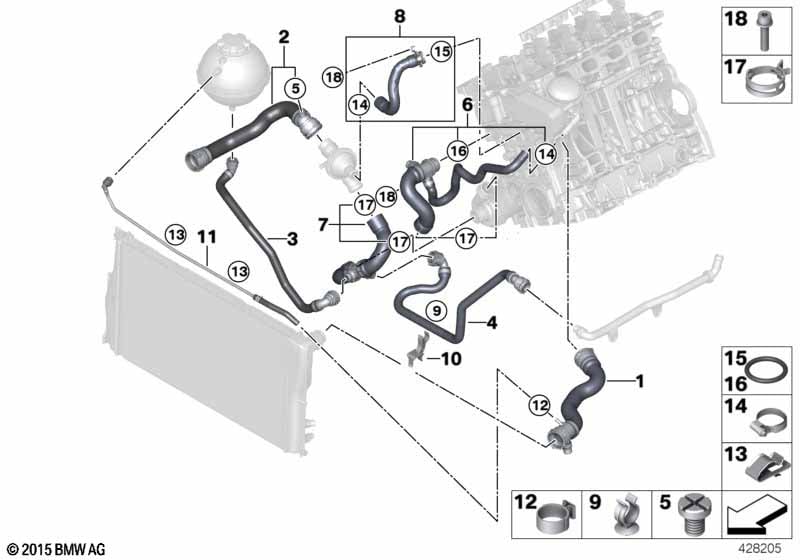

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Sport automatic transmission and Hot-climate version |
S205A=No S2TBA=No S823A=No |
||||||||
| 01 | Coolant hose | 1 | 17127619684 | +core | Shop at ECS Tuning | |||||
| 02 | Coolant hose | 1 | 17127640916 | Shop at ECS Tuning | ||||||
| 03 | Coolant hose | 1 | 17127619687 | +core | Shop at ECS Tuning | |||||
| 04 | Coolant hose | 1 | 17127619685 | +core | Shop at ECS Tuning | |||||
| 05 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| only suitable for use with aluminum oil filter module |
||||||||||
| 06 | Feed line | 1 | 12/2011 | 11537639998 | Shop at ECS Tuning | |||||
| 07 | Water hose | 1 | 04/2014 | 11537603511 | ENDED | Shop at ECS Tuning | ||||
| 07 | Water hose | 1 | 11538645481 | Shop at ECS Tuning | ||||||
| 08 | Water hose | 1 | 11537603514 | Shop at ECS Tuning | ||||||
| 09 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 10 | Bracket, coolant hose | 1 | 17127583106 | Shop at ECS Tuning | ||||||
| 11 | Vent pipe | 1 | 17128651450 | Shop at ECS Tuning | ||||||
| 12 | Hose clamp | 13,2-15,7 | 1 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 13 | Tubing support | 2 | 10/2014 | 12521741316 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 15 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 16 | O-ring | 1 | 11537603660 | Shop at ECS Tuning | ||||||
| 17 | Hose clamp | L42-48 | 3 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 18 | ISA screw | M6X25 | 3 | 07129905003 | $1.74 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
