Cooling system coolant hoses for BMW 5 Series F18 LCI 520Li (2017)

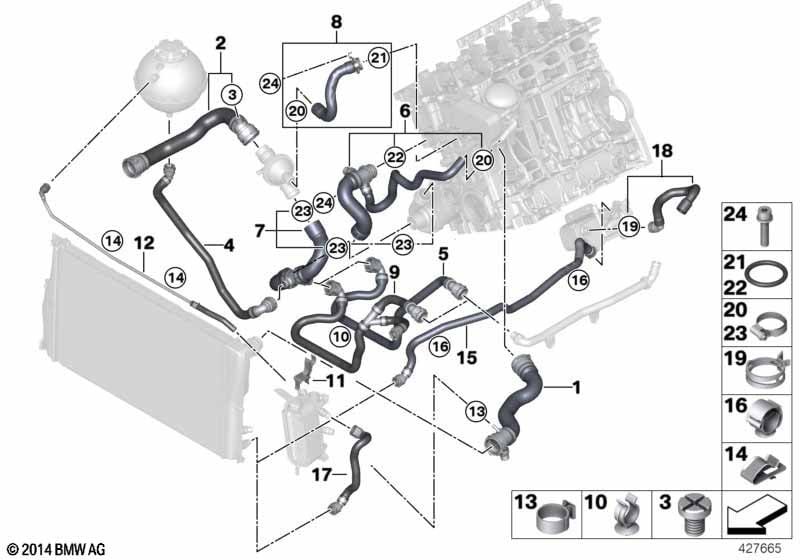

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 LCI 520Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Hot-climate version |
S823A=No |
||||||||
| 01 | Coolant hose | 1 | 17127619684 | +core | Shop at ECS Tuning | |||||
| 02 | Coolant hose | 1 | 17127640917 | Shop at ECS Tuning | ||||||
| 03 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 04 | Coolant hose | 1 | 17127619687 | +core | Shop at ECS Tuning | |||||
| 06 | Feed line | 1 | 11537639998 | Shop at ECS Tuning | ||||||
| 07 | Water hose | 1 | 11538645481 | Shop at ECS Tuning | ||||||
| 08 | Water hose | 1 | 11537603514 | Shop at ECS Tuning | ||||||
| 09 | Coolant hose | 1 | 17127619685 | +core | Shop at ECS Tuning | |||||
| 10 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| 11 | Bracket, coolant hose | 1 | 17127583106 | Shop at ECS Tuning | ||||||
| 12 | Vent pipe | 1 | 17128651450 | Shop at ECS Tuning | ||||||
| 13 | Hose clamp | 13,2-15,7 | 1 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 14 | Tubing support | 2 | 12521741316 | $0.47 | Shop at ECS Tuning | |||||
| 15 | Coolant hose | 1 | 17127619688 | +core | Shop at ECS Tuning | |||||
| 16 | Hose clamp | 2 | 17127619697 | Shop at ECS Tuning | ||||||
| 18 | Coolant hose | 1 | 17127619694 | +core | Shop at ECS Tuning | |||||
| 20 | Hose clamp | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 21 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| 22 | O-ring | 1 | 11537603660 | Shop at ECS Tuning | ||||||
| 23 | Hose clamp | L42-48 | 3 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 24 | ISA screw | M6X25 | 3 | 07129905003 | $1.74 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F18 LCI 520Li Cooling system coolant hoses?
- This technical diagram illustrates the Cooling system coolant hoses within the Radiator group for the 5 Series F18 LCI 520Li produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Coolant hose (Part #17127619684).
- Which models use the hardware listed in this Cooling system coolant hoses?
- The hardware and components featured in the Cooling system coolant hoses are specific to the 5 Series F18 LCI 520Li produced during 2017. These technical specifications ensure that parts like the Coolant hose (17127619684) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system coolant hoses assembly?
- Each item in the Cooling system coolant hoses corresponds to the numbered list below the illustration. For the 5 Series F18 LCI 520Li, you can identify the Coolant hose by locating its position on the schematic, which then links to the official BMW part number 17127619684 for the Radiator section.
