Cooling system coolant hoses for BMW 5 Series F10 530i (2013)

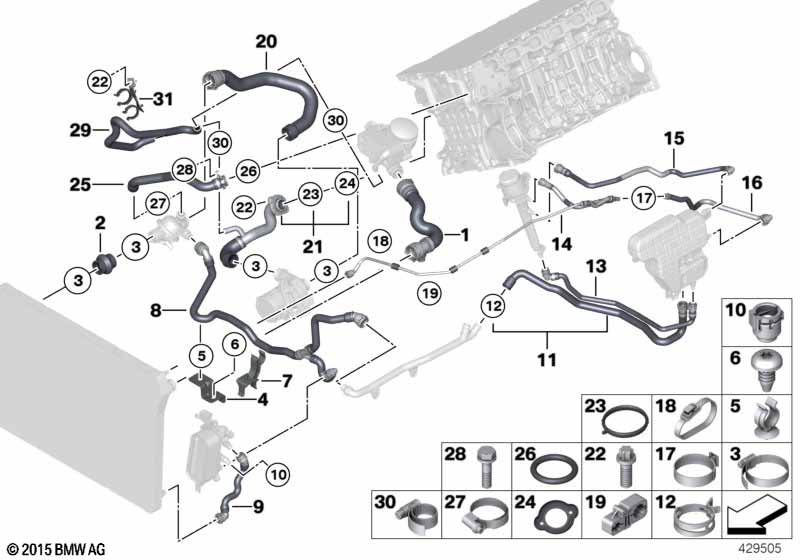

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Coolant hose | 1 | 17127578399 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 01 | Coolant hose | 1 | 17127578399 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 01 | Coolant hose | 1 | 17127578399 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 02 | Coolant hose without hose clamps | 1 | 17127610704 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 02 | Coolant hose without hose clamps | 1 | 17127610704 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 02 | Coolant hose without hose clamps | 1 | 17127610704 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 03 | Hose clamp | L42-48 | 5 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 03 | Hose clamp | L42-48 | 5 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 03 | Hose clamp | L42-48 | 5 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 04 | Bracket, coolant hose | 1 | 17127585276 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 04 | Bracket, coolant hose | 1 | 17127585276 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 04 | Bracket, coolant hose | 1 | 17127585276 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 05 | Hose clamp | 1 | 07147506219 | $0.91 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 05 | Hose clamp | 1 | 07147506219 | $0.91 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 05 | Hose clamp | 1 | 07147506219 | $0.91 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 06 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 06 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 06 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 07 | Bracket, coolant hose | 1 | 17127583106 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 07 | Bracket, coolant hose | 1 | 17127583106 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 07 | Bracket, coolant hose | 1 | 17127583106 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 08 | Coolant hose | 1 | 17127592866 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 08 | Coolant hose | 1 | 17127592866 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 08 | Coolant hose | 1 | 17127592866 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 09 | Coolant hose | 1 | 17127592651 | $26.22 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 09 | Coolant hose | 1 | 17127592651 | $26.22 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 09 | Coolant hose | 1 | 17127592651 | $26.22 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 10 | Blind plug | D=8 | 1 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 10 | Blind plug | D=8 | 1 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 10 | Blind plug | D=8 | 1 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 11 | Coolant hose | 1 | 17127592869 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 11 | Coolant hose | 1 | 17127592869 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 11 | Coolant hose | 1 | 17127592869 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 12 | Hose clamp | D=29MM | 1 | 64112755596 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 12 | Hose clamp | D=29MM | 1 | 64112755596 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 12 | Hose clamp | D=29MM | 1 | 64112755596 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 13 | Coolant hose | 1 | 17127591091 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 13 | Coolant hose | 1 | 17127591091 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 13 | Coolant hose | 1 | 17127591091 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 14 | Coolant hose | 1 | 17127599571 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 14 | Coolant hose | 1 | 17127599571 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 14 | Coolant hose | 1 | 17127599571 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 15 | Coolant hose | 1 | 17127591092 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 15 | Coolant hose | 1 | 17127591092 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 15 | Coolant hose | 1 | 17127591092 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 16 | Coolant hose | 1 | 17127599570 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 16 | Coolant hose | 1 | 17127599570 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 16 | Coolant hose | 1 | 17127599570 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 17 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 17 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 17 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 18 | Cable tie | 1 | 18307535081 | $1.68 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 18 | Cable tie | 1 | 18307535081 | $1.68 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 18 | Cable tie | 1 | 18307535081 | $1.68 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 19 | Dual clip | 1 | 64539167146 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 19 | Dual clip | 1 | 64539167146 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 19 | Dual clip | 1 | 64539167146 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 20 | Hose, thermostat-coolant pump | 1 | 11537581942 | +core | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 20 | Hose, thermostat-coolant pump | 1 | 11537581942 | +core | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 20 | Hose, thermostat-coolant pump | 1 | 11537581942 | +core | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 21 | Pipe, engine supply-coolant pump | 1 | 11537581873 | +core | Shop at ECS Tuning | |||||
| 21 | Pipe, engine supply-coolant pump | 1 | 05/2010 | 11537613176 | +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 21 | Pipe, engine supply-coolant pump | 1 | 11537581873 | +core | Shop at ECS Tuning | |||||
| 21 | Pipe, engine supply-coolant pump | 1 | 05/2010 | 11537613176 | +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 21 | Pipe, engine supply-coolant pump | 1 | 11537581873 | +core | Shop at ECS Tuning | |||||
| 21 | Pipe, engine supply-coolant pump | 1 | 05/2010 | 11537613176 | +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 22 | Torx screw | M6X16-ZNNIV SI | 4 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 22 | Torx screw | M6X16-ZNNIV SI | 4 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 22 | Torx screw | M6X16-ZNNIV SI | 4 | 07129902813 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 23 | O-ring | 1 | 11517514942 | $4.25 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 23 | O-ring | 1 | 11517514942 | $4.25 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 23 | O-ring | 1 | 11517514942 | $4.25 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 24 | Gasket | 1 | 11537534880 | $12.02 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 24 | Gasket | 1 | 11537534880 | $12.02 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 24 | Gasket | 1 | 11537534880 | $12.02 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 25 | Hose, cylinder head-thermostat | 1 | 11537581063 | +core | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 25 | Hose, cylinder head-thermostat | 1 | 11537581063 | +core | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 25 | Hose, cylinder head-thermostat | 1 | 11537581063 | +core | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 26 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 26 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 26 | O-ring | 29X2,9 | 1 | 11537545278 | $6.08 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 27 | Hose clamp | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 27 | Hose clamp | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 27 | Hose clamp | L23-35 | 1 | 11537547945 | $2.39 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 28 | Hex bolt with washer | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 28 | Hex bolt with washer | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 28 | Hex bolt with washer | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 30 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 30 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 30 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 31 | Spacer holder | 1 | 11537555977 | $3.58 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 31 | Spacer holder | 1 | 11537555977 | $3.58 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 31 | Spacer holder | 1 | 11537555977 | $3.58 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 530i Cooling system coolant hoses?
- This technical diagram illustrates the Cooling system coolant hoses within the Radiator group for the 5 Series F10 530i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Coolant hose (Part #17127578399).
- Which models use the hardware listed in this Cooling system coolant hoses?
- The hardware and components featured in the Cooling system coolant hoses are specific to the 5 Series F10 530i produced during 2013. These technical specifications ensure that parts like the Coolant hose (17127578399) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system coolant hoses assembly?
- Each item in the Cooling system coolant hoses corresponds to the numbered list below the illustration. For the 5 Series F10 530i, you can identify the Coolant hose by locating its position on the schematic, which then links to the official BMW part number 17127578399 for the Radiator section.
