Cooling system coolant hoses for BMW 7 Series F02 LCI 760Li (2015)

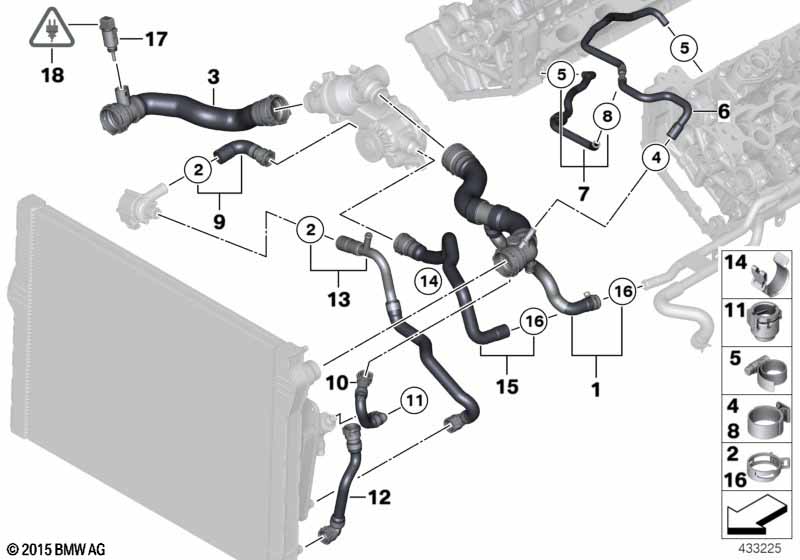

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 01 | Coolant hose | 1 | 03/2010 | 17127611149 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | D=27MM | 2 | 64213405913 | $1.67 | Shop at ECS Tuning | ||||
| 03 | Coolant hose | 1 | 17127591089 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Coolant hose | 1 | 17127589929 | Shop at ECS Tuning | ||||||
| 07 | Vent hose | 1 | 17127591088 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | 13,2-15,7 | 1 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 09 | Coolant hose | 1 | 17127595610 | Shop at ECS Tuning | ||||||
| 11 | Blind plug | D=8 | 1 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| 12 | Coolant hose | 1 | 17227575387 | $26.22 | Shop at ECS Tuning | |||||
| 13 | Coolant hose | 1 | 17127595611 | Shop at ECS Tuning | ||||||
| 15 | Coolant hose | 1 | 03/2010 | 17127611148 | Shop at ECS Tuning | |||||
| 16 | Hose clamp | D=27MM | 4 | 64213405913 | $1.67 | Shop at ECS Tuning | ||||
| 17 | Temperature sensor, coolant | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
