Cooling system coolant hoses for BMW 5 Series F10 LCI 550i (2016)

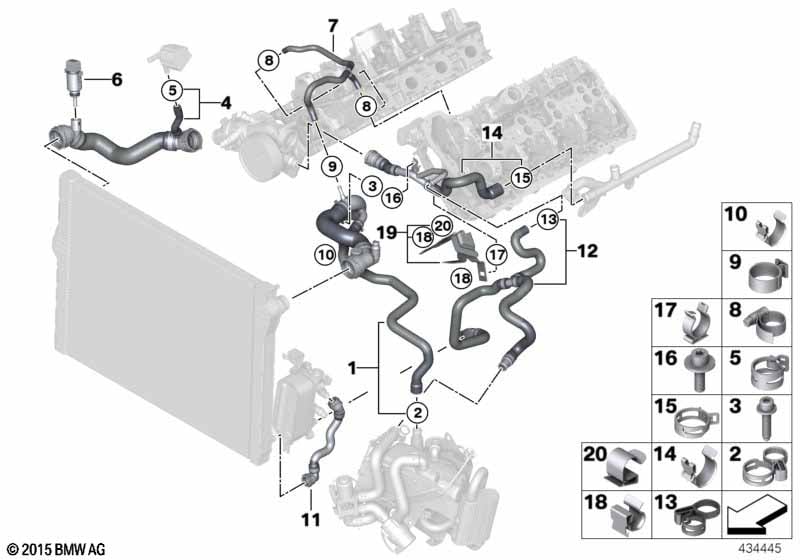

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating and Hot-climate version |
S536A=Yes S823A=No |
||||||||
| 01 | Coolant hose | 1 | 17127595251 | Shop at ECS Tuning | ||||||
| 02 | Spring ring shell | D=28MM | 1 | 64219182743 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | 1 | 07149166130 | Shop at ECS Tuning | ||||||
| 04 | Coolant hose | 1 | 17127575427 | $54.57 | Shop at ECS Tuning | |||||
| 05 | Spring ring shell | D=19MM | 1 | 64219174339 | Shop at ECS Tuning | |||||
| 06 | Temperature sensor, coolant | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 07 | Ventilation line, engine | 1 | 17127619702 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | 23,9-27,1 | 1 | 11631716970 | $0.79 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | 13,2-15,7 | 1 | 34321156893 | $0.58 | Shop at ECS Tuning | ||||
| 10 | Clip | D=23 | 1 | 17127592404 | $7.32 | Shop at ECS Tuning | ||||
| 11 | Coolant hose | 1 | 17127592651 | $26.22 | Shop at ECS Tuning | |||||
| 12 | Coolant hose | 1 | 17127619725 | Shop at ECS Tuning | ||||||
| 13 | Hose clamp | 1 | 17127591007 | Shop at ECS Tuning | ||||||
| 14 | Coolant hose | 1 | 17127619703 | Shop at ECS Tuning | ||||||
| 15 | Hose clamp | D=30MM | 1 | 64219174341 | Shop at ECS Tuning | |||||
| 16 | ISA screw | M6X18MM | 1 | 07129903977 | $1.54 | Shop at ECS Tuning | ||||
| 17 | Diagnosis plug bracket | 1 | 11531726298 | $1.19 | Shop at ECS Tuning | |||||
| 18 | Fixing clamp | D=12-14/B=5 | 2 | 12527578321 | $1.08 | Shop at ECS Tuning | ||||
| 19 | Bracket, coolant hose | 1 | 17127615352 | Shop at ECS Tuning | ||||||
| 20 | Clip | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
