Cooling system coolant hoses for BMW 5 Series F10 520d (2011)

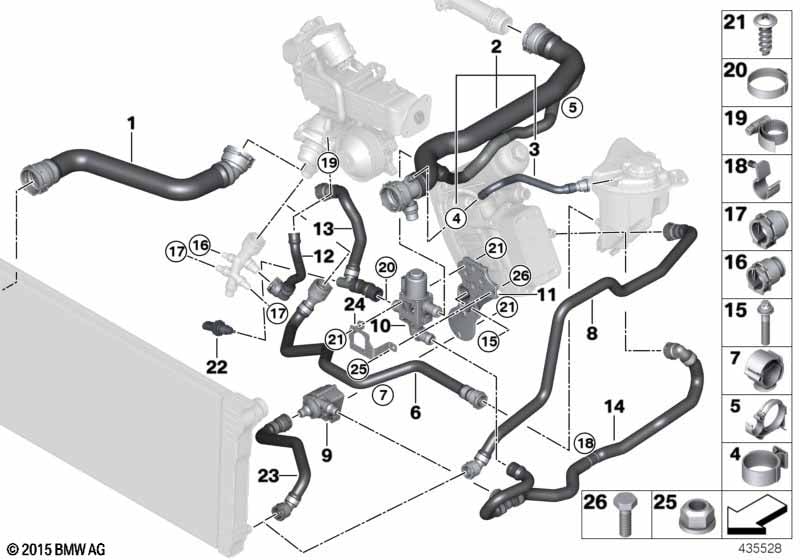

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
||||||||
| 01 | Coolant hose | 1 | 17127809821 | +core | Shop at ECS Tuning | |||||
| 02 | Coolant hose | 1 | 17127809818 | +core | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance |
S163A=Yes |
|||||||||
| 02 | Coolant hose | 1 | 17128514243 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hose clamp | 28,6MM | 1 | 11631716971 | Shop at ECS Tuning | |||||
| 03 | Coolant hose | 1 | 17127809816 | +core | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Dual clip | 1 | 17127823702 | Shop at ECS Tuning | ||||||
| 06 | Coolant hose | 1 | 17127809819 | +core | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance |
S163A=Yes |
|||||||||
| 06 | Coolant hose | 1 | 17128514244 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Cap | D=6 | 1 | 17128515062 | Shop at ECS Tuning | |||||
| -- | Blind plug | D=8 | 2 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 or EU3 exhaust emissions standard |
S161A=Yes S169A=Yes |
|||||||||
| 06 | Coolant hose | 1 | 17127809819 | +core | Shop at ECS Tuning | |||||
| 07 | Hose clamp | 1 | 17127807844 | $1.22 | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance |
S163A=No |
|||||||||
| 08 | Coolant hose | 1 | 17127809820 | +core | Shop at ECS Tuning | |||||
| For vehicles with BMW Diesel with Blue Performance |
S163A=Yes |
|||||||||
| 09 | Auxiliary water pump | 1 | 11538843815 | Shop at ECS Tuning | ||||||
| 10 | Changeover valve | 1 | 11538572513 | Shop at ECS Tuning | ||||||
| 11 | Bracket for auxiliary water pump | 1 | 11538514464 | Shop at ECS Tuning | ||||||
| For vehicles with BMW Diesel with Blue Performance Only compatible with exhaust gas cooler from Korens |
S163A=Yes |
|||||||||
| 12 | Coolant hose | 1 | 11538511761 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Exhaust gas cooler low temperature | X | 11718517724 | Shop at ECS Tuning | ||||||
| For vehicles with BMW Diesel with Blue Performance Only compatible with exhaust gas cooler from BorgWarner This part is only included in the scope of delivery of the exhaust gas recirculation module. |
S163A=Yes |
|||||||||
| 12 | Coolant hose | 1 | 11715B41D62 | NoS | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Exhaust gas cooler low temperature | X | 11717822346 | Shop at ECS Tuning | ||||||
| For vehicles with BMW Diesel with Blue Performance Only compatible with exhaust gas cooler from Korens |
S163A=Yes |
|||||||||
| 13 | Coolant hose | 1 | 11538514234 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Exhaust gas cooler low temperature | X | 11718517724 | Shop at ECS Tuning | ||||||
| For vehicles with BMW Diesel with Blue Performance Only compatible with exhaust gas cooler from BorgWarner |
S163A=Yes |
|||||||||
| 13 | Coolant hose | 1 | 11537827841 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Exhaust gas cooler low temperature | X | 11717822346 | Shop at ECS Tuning | ||||||
| For vehicles with BMW Diesel with Blue Performance |
S163A=Yes |
|||||||||
| 14 | Coolant hose | 1 | 11538514233 | Shop at ECS Tuning | ||||||
| 15 | Star-socket screw | BM8X40-U1-ZNS3 | 2 | 07119907893 | Shop at ECS Tuning | |||||
| 16 | Cap | D=6 | 1 | 17128515062 | Shop at ECS Tuning | |||||
| 17 | Blind plug | D=8 | 2 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| 18 | Bracket, coolant hose | 1 | 17128506848 | Shop at ECS Tuning | ||||||
| 19 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 20 | Hose clamp | 28,6MM | 2 | 11631716971 | Shop at ECS Tuning | |||||
| 21 | Oval head screw | 35X12 | 11 | 11538570926 | Shop at ECS Tuning | |||||
| 22 | Coolant temperature sensor | 1 | 13627823993 | Shop at ECS Tuning | ||||||
| 23 | Coolant hose | 1 | 17128514245 | Shop at ECS Tuning | ||||||
