Radiator/expansion tank/frame for BMW 3 Series E36 320i (1995)

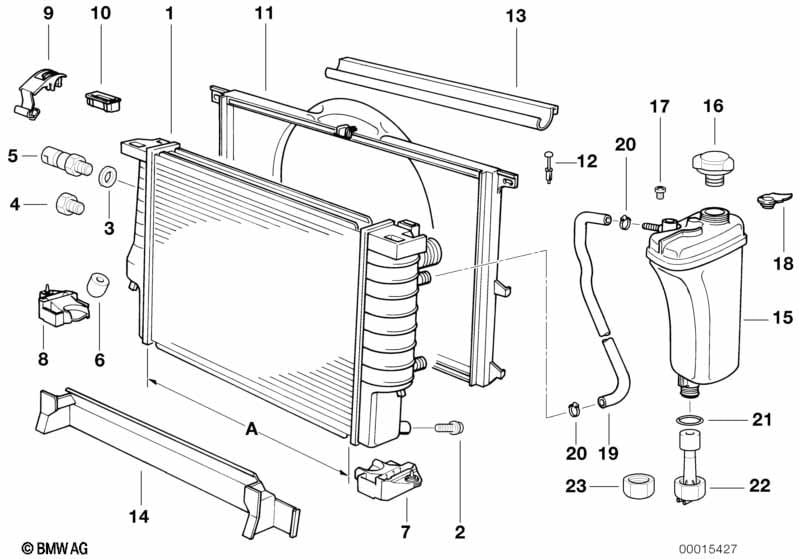

This Radiator/expansion tank/frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan or National version Australia or Hot-climate version |
L807A=Yes L810A=Yes S823A=Yes |
|||||||||
| 01 | Radiator | A=550MM | 1 | 17111723784 | Shop at ECS Tuning | |||||
| 02 | Drain plug radiator | M10 | 1 | 17111719384 | $7.57 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A14X20-CUSN | 1 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 04 | Screw plug | M14X1,5-ZN/PBX | 1 | 07119919146 | $2.35 | Shop at ECS Tuning | ||||
| 05 | Double temperature switch | 91/99CEL | 1 | 61311378073 | $32.46 | SI 120787(777) | Shop at ECS Tuning | |||
| 06 | Rubber buffer | 2 | 17111178412 | $1.68 | Shop at ECS Tuning | |||||
| 07 | Bracket lower | 1 | 17111723337 | $4.48 | Shop at ECS Tuning | |||||
| 08 | Bracket lower | 1 | 17111723337 | $4.48 | Shop at ECS Tuning | |||||
| 09 | Bracket upper | 2 | 17111723341 | $3.07 | Shop at ECS Tuning | |||||
| 10 | Rubber Mounting | 2 | 17201719414 | $1.18 | Shop at ECS Tuning | |||||
| 11 | Fan shroud | A=550MM | 1 | 17111723031 | $30.63 | Shop at ECS Tuning | ||||
| 12 | Expanding rivet | 2 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 13 | Profile-gasket | L=647MM | 2 | 17101712609 | $6.47 | Shop at ECS Tuning | ||||
| 15 | Expansion tank | 1 | 17111723520 | $79.43 | +core | Shop at ECS Tuning | ||||
| 16 | Radiator cap | 2,0BAR | 1 | 17117639022 | Shop at ECS Tuning | |||||
| 17 | Vent screw | M10X1-SW | 1 | 17111712788 | $3.17 | Shop at ECS Tuning | ||||
| 18 | Cap | 1 | 17111723580 | $2.83 | Shop at ECS Tuning | |||||
| 19 | Water hose | 1 | 17111723521 | $10.12 | Shop at ECS Tuning | |||||
| 20 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 21 | O-ring | D=19,3X2,4 | 1 | 61311361249 | $5.13 | Shop at ECS Tuning | ||||
| 22 | Levelling switch radiator | L= 95MM | 1 | 09/1995 | 61311384739 | $32.46 | Shop at ECS Tuning | |||
Notes
- SI = Service Information
- +core = plus core charge (possibility of a return of the old part)
