Transmission oil air cooling for BMW 3 Series E36 328i (1999)

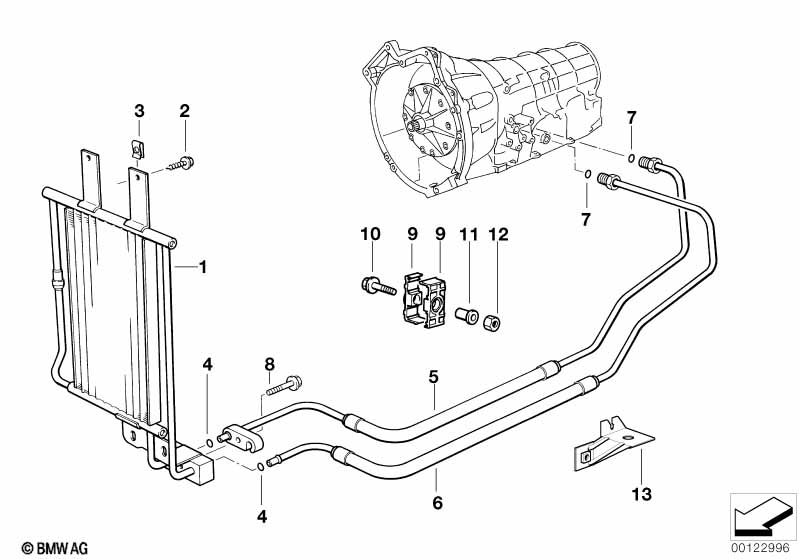

This Transmission oil air cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooler-plug type connection | 1 | 17201728770 | $296.10 | Shop at ECS Tuning | |||||
| 02 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 04 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Oil cooling pipe inlet | A5S310Z | 1 | 17221433000 | $110.18 | Shop at ECS Tuning | ||||
| 06 | Oil cooling pipe outlet | A5S310Z | 1 | 17221433001 | $63.05 | Shop at ECS Tuning | ||||
| 07 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 08 | Screw | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
| 09 | Bracket oil pipe | 4 | 17201712210 | $1.02 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Spacer sleeve | D6 | 2 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 12 | Hex nut | BM6-8-ZNFE SW | 1 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
| 13 | Bracket oil pipe | 1 | 17221433006 | $4.58 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Transmission oil air cooling?
- This technical diagram illustrates the Transmission oil air cooling within the Radiator group for the 3 Series E36 328i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Oil cooler-plug type connection (Part #17201728770).
- Which models use the hardware listed in this Transmission oil air cooling?
- The hardware and components featured in the Transmission oil air cooling are specific to the 3 Series E36 328i produced during 1999. These technical specifications ensure that parts like the Oil cooler-plug type connection (17201728770) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Transmission oil air cooling assembly?
- Each item in the Transmission oil air cooling corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Oil cooler-plug type connection by locating its position on the schematic, which then links to the official BMW part number 17201728770 for the Radiator section.
