Coolant radiator mounting hardware for BMW 4 Series F32 LCI 440i (2020)

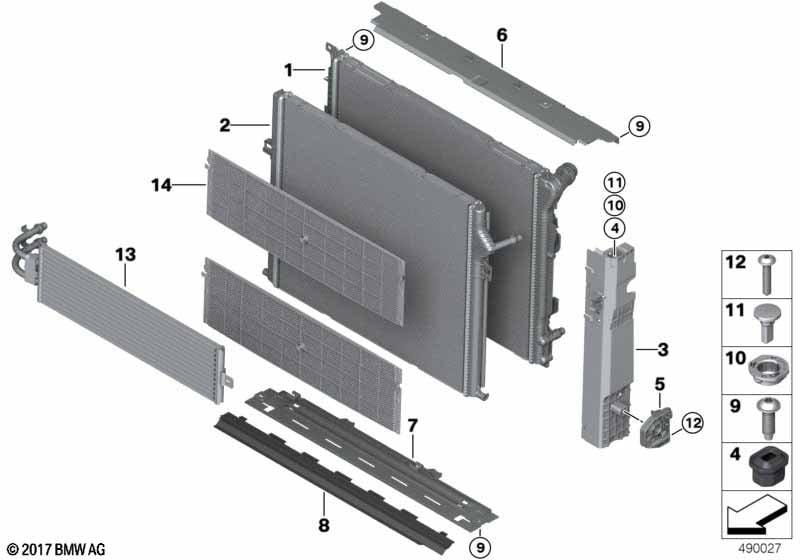

This Coolant radiator mounting hardware technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 LCI 440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | 1 | 17118482623 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Radiator | 1 | 17118482622 | Shop at ECS Tuning | ||||||
| 02 | Radiator | 1 | 01/2018 | 17118741830 | Shop at ECS Tuning | |||||
| 03 | Module mount, left | 1 | 17119487032 | Shop at ECS Tuning | ||||||
| 03 | Module mount, right | 1 | 17119487033 | Shop at ECS Tuning | ||||||
| 04 | Module bushing | 2 | 17117600539 | Shop at ECS Tuning | ||||||
| 05 | Bracket for module, left | 1 | 17118620732 | Shop at ECS Tuning | ||||||
| 05 | Bracket for module, right | 1 | 17118620733 | Shop at ECS Tuning | ||||||
| 06 | Cover,top | 1 | 17118625432 | Shop at ECS Tuning | ||||||
| 07 | Covering Lower | 1 | 17118625433 | Shop at ECS Tuning | ||||||
| 08 | Seal, lower | 1 | 17118625434 | Shop at ECS Tuning | ||||||
| 09 | Screw self-tapping | D6X20 ZNS3 | 5 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 10 | Support sleeve | 2 | 17117596923 | Shop at ECS Tuning | ||||||
| 11 | Bracket upper | 2 | 17117596922 | Shop at ECS Tuning | ||||||
| 12 | Fillister head screw | M6X30 | 2 | 17117596108 | Shop at ECS Tuning | |||||
| 14 | Rock guard | 2 | 17118485042 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Module mount, left | X | 17119487032 | Shop at ECS Tuning | ||||||
| -- | Module mount, right | X | 17119487033 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F32 LCI 440i Coolant radiator mounting hardware?
- This technical diagram illustrates the Coolant radiator mounting hardware within the Radiator group for the 4 Series F32 LCI 440i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Radiator (Part #17118482623).
- Which models use the hardware listed in this Coolant radiator mounting hardware?
- The hardware and components featured in the Coolant radiator mounting hardware are specific to the 4 Series F32 LCI 440i produced during 2020. These technical specifications ensure that parts like the Radiator (17118482623) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant radiator mounting hardware assembly?
- Each item in the Coolant radiator mounting hardware corresponds to the numbered list below the illustration. For the 4 Series F32 LCI 440i, you can identify the Radiator by locating its position on the schematic, which then links to the official BMW part number 17118482623 for the Radiator section.
