Cooling system coolant hoses for BMW 3 Series F31 LCI 320i (2019)

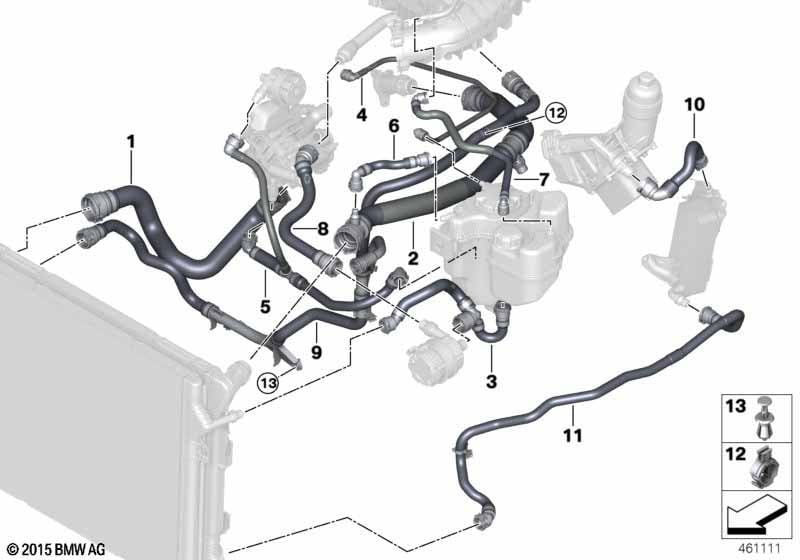

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced to 07/01/2016 |
|||||||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 01 | Hose, radiator top-thermostat | 1 | 17128616524 | Shop at ECS Tuning | ||||||
| 02 | Hose, radiator-engine | 1 | 17128616528 | Shop at ECS Tuning | ||||||
| 03 | Line, expansion tank- | 1 | 17128616531 | Shop at ECS Tuning | ||||||
| 04 | Hose, cylinder head-expansion tank | 1 | 17129845173 | Shop at ECS Tuning | ||||||
| 05 | Hose f engine inlet-changeover valve | 1 | 17128616914 | Shop at ECS Tuning | ||||||
| 06 | Hose between radiator-expansion tank | 1 | 17128620944 | Shop at ECS Tuning | ||||||
| 07 | Hose, expansion tank- | 1 | 17128623572 | Shop at ECS Tuning | ||||||
| 08 | Hose coolant pump | 1 | 17128634285 | Shop at ECS Tuning | ||||||
| 09 | Hose, charge air cooler- | 1 | 17128677245 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 10 | Hose transmission oil heat exchanger | 1 | 17127640287 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 10 | Hose transmission oil heat exchanger | 1 | 17127640287 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 10 | Hose transmission oil heat exchanger | 1 | 17127640287 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 11 | Hose, radiator | 1 | 17128616559 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=Yes S2TBA=No |
|||||||||
| 11 | Hose, radiator | 1 | 17128616559 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=Yes |
|||||||||
| 11 | Hose, radiator | 1 | 17128616559 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission or Sport automatic transmission |
S205A=Yes S2TBA=Yes |
|||||||||
| 12 | Hose clamp | 1 | 17123417852 | Shop at ECS Tuning | ||||||
| 13 | Expanding rivet | 1 | 17127620959 | Shop at ECS Tuning | ||||||
