Cooling system - Engine coolant hoses for BMW 7 Series G11 LCI 730dX (2020)

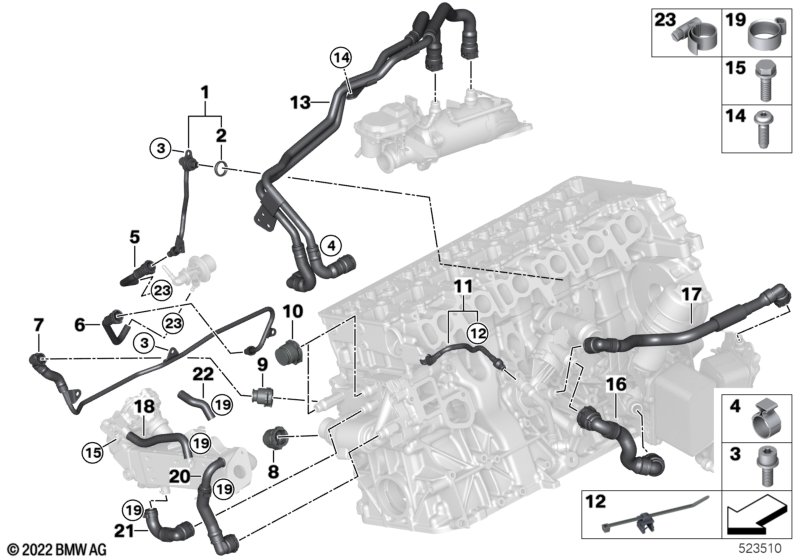

This Cooling system - Engine coolant hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emissions standard EU5 |
S161A=Yes |
|||||||||
| 09 | Cap | D=6 | 1 | 17128515062 | Shop at ECS Tuning | |||||
| 11 | Line, cylinder head-expansion tank | 1 | 11538571597 | Shop at ECS Tuning | ||||||
| 12 | Cable strap with bracket | L=200MM | 1 | 61137560191 | $1.40 | Shop at ECS Tuning | ||||
| 13 | Line, EGR cooler - thermostat | 1 | 11538571601 | Shop at ECS Tuning | ||||||
| 14 | Screw | 6X20 | 2 | 07129907489 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M6X18MM | 1 | 32416782036 | $0.48 | Shop at ECS Tuning | ||||
| 16 | Hose, oil filter module-thermostat | 1 | 11538573382 | Shop at ECS Tuning | ||||||
| 17 | Hose, transmission oil cooler- | 1 | 11538571595 | Shop at ECS Tuning | ||||||
| 18 | Hose, EGR cooler-EGR valve | 1 | 11718576803 | Shop at ECS Tuning | ||||||
| 19 | Hose clamp | 13,1-15,3 | 6 | 16121176918 | $1.76 | Shop at ECS Tuning | ||||
| 20 | Hose, EGR cooler-thermostat | 1 | 11718576801 | Shop at ECS Tuning | ||||||
| 21 | Hose, thermostat-EGR cooler | 1 | 11718576800 | Shop at ECS Tuning | ||||||
| 22 | Hose, EGR cooler-EGR valve | 1 | 11718576802 | Shop at ECS Tuning | ||||||
