Expansion tank for BMW 7 Series G11 725d (2019)

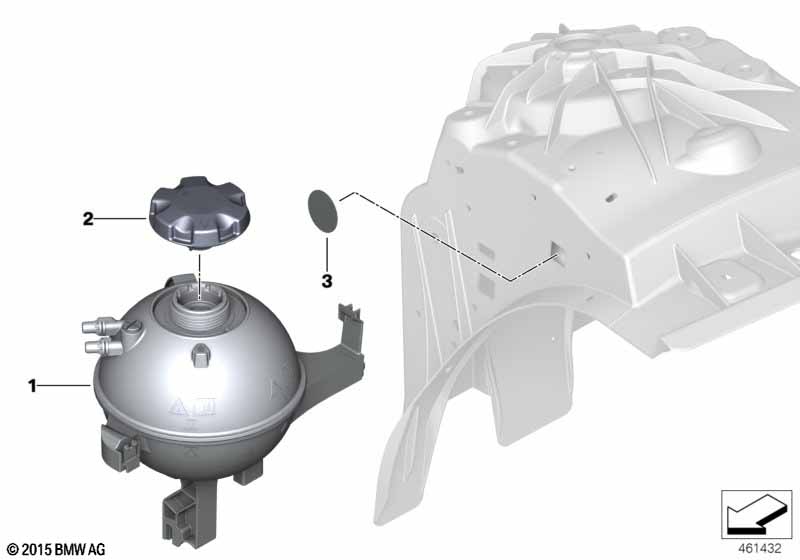

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 725d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 17138610654 | Shop at ECS Tuning | ||||||
| 02 | Screw cap for expansion tank | 1 | 17117639020 | Shop at ECS Tuning | ||||||
| 03 | Seal and insulation mat | D=39,5 /SCHWARZ | 1 | 07147392446 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G11 725d Expansion tank?
- This technical diagram illustrates the Expansion tank within the Radiator group for the 7 Series G11 725d produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #17138610654).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 7 Series G11 725d produced during 2019. These technical specifications ensure that parts like the Expansion tank (17138610654) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 7 Series G11 725d, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 17138610654 for the Radiator section.
