Transmission oil cooler/oil cooler line for BMW 7 Series G11 LCI 740dX (2020)

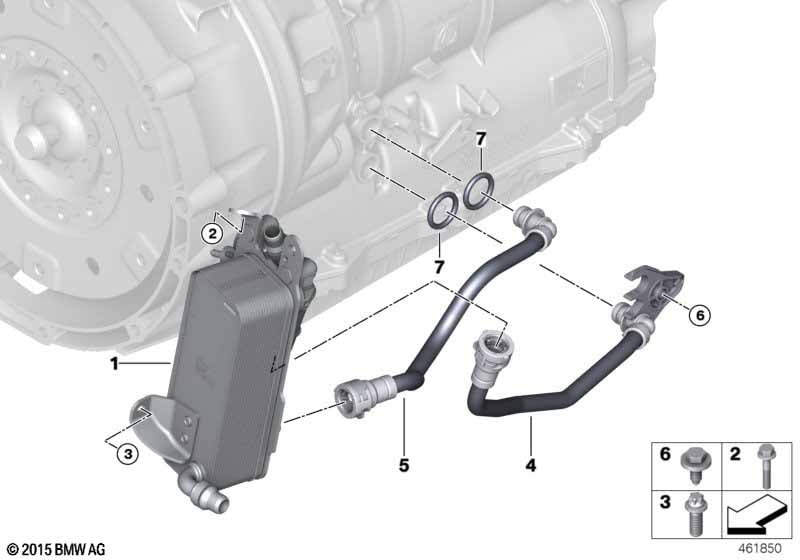

This Transmission oil cooler/oil cooler line technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission oil cooler | 1 | 17218570062 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | M6X30 | 2 | 07119904400 | Shop at ECS Tuning | |||||
| 03 | Star-socket screw | M6X16-ZNNIV SI | 2 | 07119907463 | Shop at ECS Tuning | |||||
| 04 | Transmission oil cooler line, flow | 1 | 02/2017 | 17228654879 | Shop at ECS Tuning | |||||
| 05 | Transmission oil cooler line, return | 1 | 17228597825 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt | M6X25 UD15 | 1 | 17228678827 | Shop at ECS Tuning | |||||
| 07 | O-ring | 13,94X2,62 | 2 | 17227613656 | Shop at ECS Tuning |
