Cooling system-external Radiator for BMW 7 Series G12 740LdX (2019)

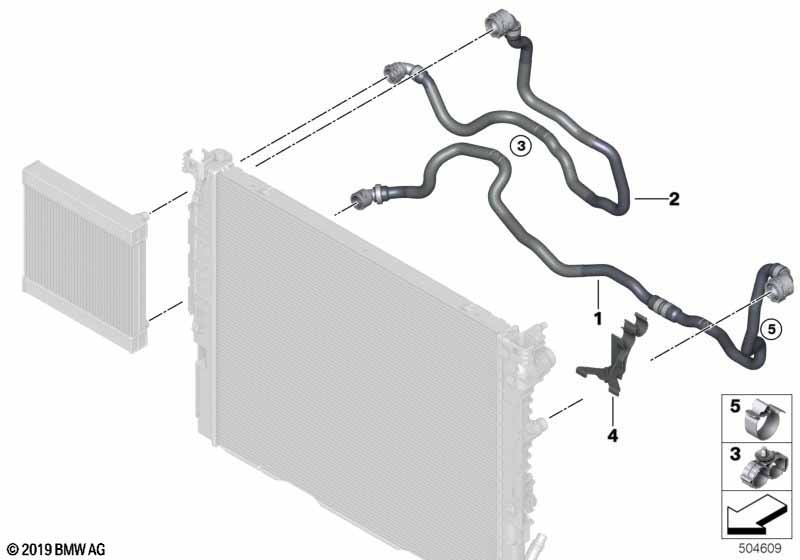

This Cooling system-external Radiator technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Hose, radiator | 1 | 17128602633 | Shop at ECS Tuning | ||||||
| 02 | Hose, radiator | 1 | 17128602634 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp, double | 1 | 32417849652 | Shop at ECS Tuning | ||||||
| 04 | Bracket, radiator | 2 | 07/2017 | 17128670903 | Shop at ECS Tuning | |||||
