Cooling system coolant hoses for BMW 2 Series F45 Active Tourer 225i

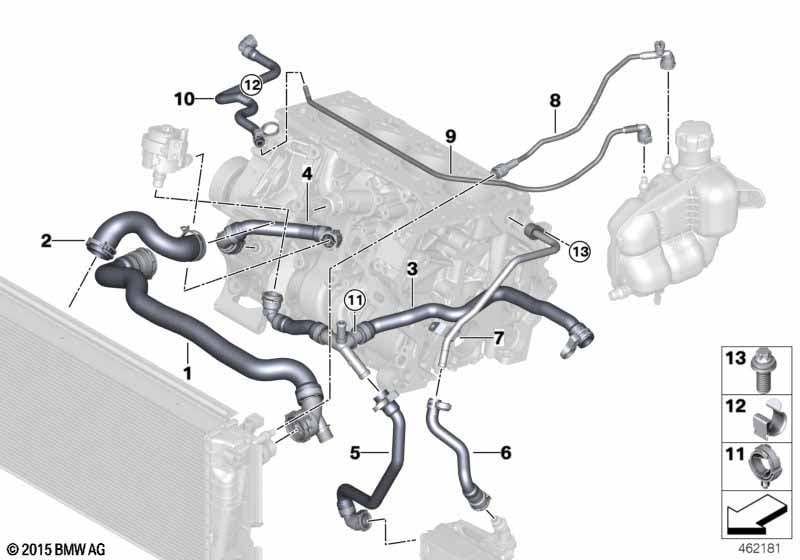

This Cooling system coolant hoses technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 225i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, radiator-engine | 1 | 17127617363 | Shop at ECS Tuning | ||||||
| 02 | Hose from radiator bottom - thermostat | 1 | 17127617368 | Shop at ECS Tuning | ||||||
| 03 | Line pump-exhaust turboch.-heat exch. | 1 | 17127617377 | Shop at ECS Tuning | ||||||
| 04 | Pipe, coolant pump-electr. coolant pump | 1 | 17127617380 | Shop at ECS Tuning | ||||||
| 05 | Hose, heat exchanger-coolant pipe | 1 | 17127640014 | Shop at ECS Tuning | ||||||
| 06 | Hose transmission oil heat exchanger | 1 | 17127617381 | Shop at ECS Tuning | ||||||
| 07 | Refrigerant pipe | 1 | 17128606015 | Shop at ECS Tuning | ||||||
| 08 | Pipe, radiator-expansion tank | 1 | 17127617366 | Shop at ECS Tuning | ||||||
| 09 | Pipe, expansion tank-cylinder head | 1 | 17127646898 | Shop at ECS Tuning | ||||||
| 10 | Line, cylinder head-expansion tank | 1 | 17127646896 | Shop at ECS Tuning | ||||||
| 11 | Hose clamp | 1 | 17127615464 | Shop at ECS Tuning | ||||||
| 12 | Cable clamp | 1 | 08/2024 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 12 | Clip | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer 225i Cooling system coolant hoses?
- This technical diagram illustrates the Cooling system coolant hoses within the Radiator group for the 2 Series F45 Active Tourer 225i. It provides a detailed exploded view of the components, identifying key parts such as the Hose, radiator-engine (Part #17127617363).
- Which models use the hardware listed in this Cooling system coolant hoses?
- The hardware and components featured in the Cooling system coolant hoses are specific to the 2 Series F45 Active Tourer 225i. These technical specifications ensure that parts like the Hose, radiator-engine (17127617363) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system coolant hoses assembly?
- Each item in the Cooling system coolant hoses corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer 225i, you can identify the Hose, radiator-engine by locating its position on the schematic, which then links to the official BMW part number 17127617363 for the Radiator section.
