Heat exchanger for BMW 2 Series F45 Active Tourer 225i

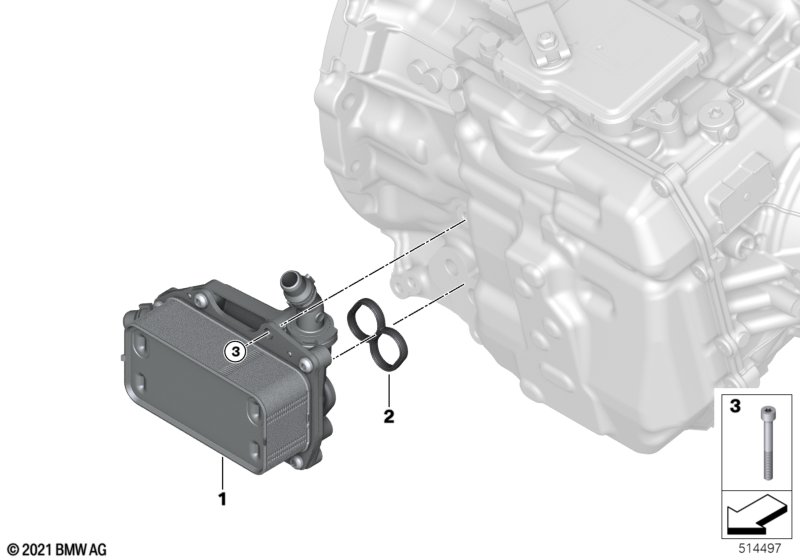

This Heat exchanger technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 225i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat exchanger | 1 | 17217640013 | Shop at ECS Tuning | ||||||
| 02 | Gasket | 1 | 17218844535 | Shop at ECS Tuning | ||||||
| 03 | ISA screw | M8X55 | 3 | 07129904261 | $6.08 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer 225i Heat exchanger?
- This technical diagram illustrates the Heat exchanger within the Radiator group for the 2 Series F45 Active Tourer 225i. It provides a detailed exploded view of the components, identifying key parts such as the Heat exchanger (Part #17217640013).
- Which models use the hardware listed in this Heat exchanger?
- The hardware and components featured in the Heat exchanger are specific to the 2 Series F45 Active Tourer 225i. These technical specifications ensure that parts like the Heat exchanger (17217640013) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heat exchanger assembly?
- Each item in the Heat exchanger corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer 225i, you can identify the Heat exchanger by locating its position on the schematic, which then links to the official BMW part number 17217640013 for the Radiator section.
