Expansion tank for BMW 4 Series F32 LCI 420i (2020)

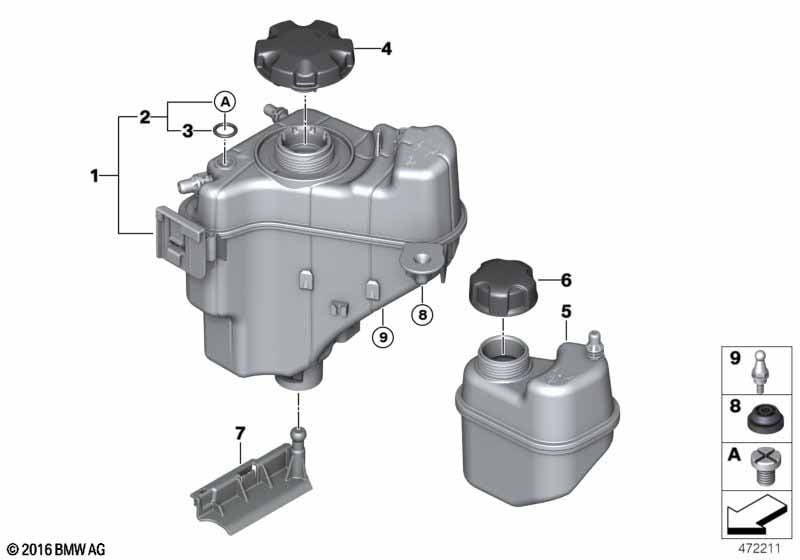

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 17138677649 | Shop at ECS Tuning | ||||||
| 02 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 03 | O-ring | 9X2 | 1 | 11537793248 | $3.16 | Shop at ECS Tuning | ||||
| 04 | Screw cap for expansion tank | 1 | 17117639020 | Shop at ECS Tuning | ||||||
| 05 | Expansion tank | 1 | 17138617045 | Shop at ECS Tuning | ||||||
| 06 | Screw plug, expansion tank | 1 | 17135A1BD89 | Shop at ECS Tuning | ||||||
| 07 | Bracket, expansion tank | 1 | 17138634324 | Shop at ECS Tuning | ||||||
| 08 | Rubber buffer | 1 | 13717571356 | $3.41 | Shop at ECS Tuning | |||||
| 09 | Retaining pin | 1 | 11127643221 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F32 LCI 420i Expansion tank?
- This technical diagram illustrates the Expansion tank within the Radiator group for the 4 Series F32 LCI 420i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #17138677649).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 4 Series F32 LCI 420i produced during 2020. These technical specifications ensure that parts like the Expansion tank (17138677649) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 4 Series F32 LCI 420i, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 17138677649 for the Radiator section.
