Cooling system-external Radiator for BMW 7 Series G12 LCI 740Li (2022)

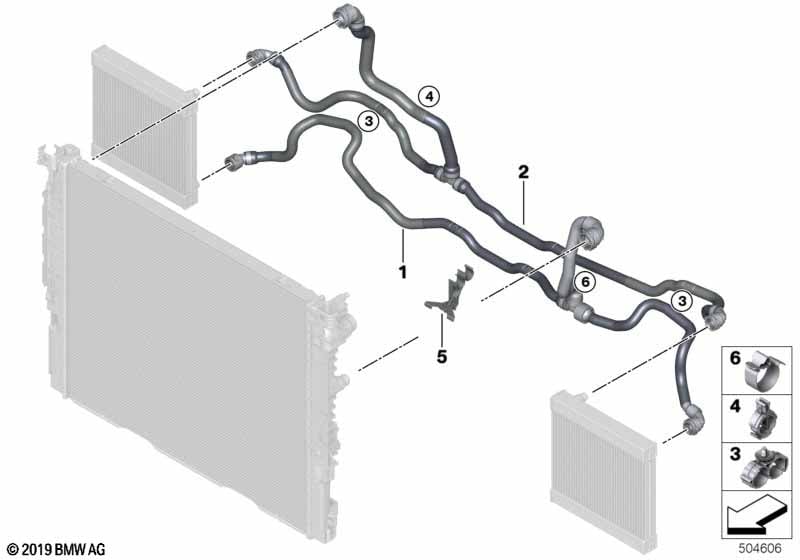

This Cooling system-external Radiator technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Hose, remote radiator- | 1 | 17128602862 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Cable holder | 1 | 07149347394 | Shop at ECS Tuning | ||||||
| 02 | Hose, remote radiator- | 1 | 17128602863 | Shop at ECS Tuning | ||||||
| 03 | Hose clamp, double | 2 | 32417849652 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | 1 | 17127599703 | Shop at ECS Tuning | ||||||
| 05 | Bracket, radiator | 2 | 07/2017 | 17128670903 | Shop at ECS Tuning | |||||
| 06 | Cable holder | 1 | 07149347394 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 LCI 740Li Cooling system-external Radiator?
- This technical diagram illustrates the Cooling system-external Radiator within the Radiator group for the 7 Series G12 LCI 740Li produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Hose, remote radiator- (Part #17128602862).
- Which models use the hardware listed in this Cooling system-external Radiator?
- The hardware and components featured in the Cooling system-external Radiator are specific to the 7 Series G12 LCI 740Li produced during 2022. These technical specifications ensure that parts like the Hose, remote radiator- (17128602862) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-external Radiator assembly?
- Each item in the Cooling system-external Radiator corresponds to the numbered list below the illustration. For the 7 Series G12 LCI 740Li, you can identify the Hose, remote radiator- by locating its position on the schematic, which then links to the official BMW part number 17128602862 for the Radiator section.
